Why Most PCB Assembly Testing Fails to Deliver ROI – And How to Fix It

Over the past decade working shoulder-to-shoulder with electronics manufacturers, I have watched a single costly mistake repeat itself: treating quality control testing like a bureaucratic checkbox rather than a strategic investment. The real question shouldn't be "how much does testing cost?" but "what does it cost not to test?" When you are shipping custom PCB assembly for industrial motherboards or automotive electronics, one latent defect can trigger recalls, field failures, and reputation damage that dwarfs any testing budget. At Custom PCB Assembly Services facilities like NEWEI, we have engineered our entire quality inspection workflow around one principle: every dollar spent on testing should return tenfold in defect prevention and customer trust. Let me walk you through the real ROI of a comprehensive PCB quality control system.

My View: Most companies underestimate the cost of poor quality. A 0.1% defect rate on a 10,000-unit run of handheld game consoles means 10 potentially faulty devices reaching customers. The support costs, return logistics, and brand damage far exceed the incremental testing expense. Investing in robust PCBA testing isn't a cost center – it's the most profitable insurance you'll ever buy.

The Hidden Cost of Incomplete PCB Assembly Testing

Let's break down the numbers. A typical PCB assembly project for a rugged tablet might involve 300+ components, multiple BGA packages, and fine-pitch connectors. Without rigorous testing, you are flying blind. The average cost of detecting a defect after shipment can be 10x to 100x higher than catching it during manufacturing. This is where dedicated quality inspection solutions become non-negotiable. At NEWEI, our testing protocol isn't just about finding faults – it's about building a data-driven feedback loop that continuously improves our SMT processes.

AOI and X-Ray: The First Line of Defense

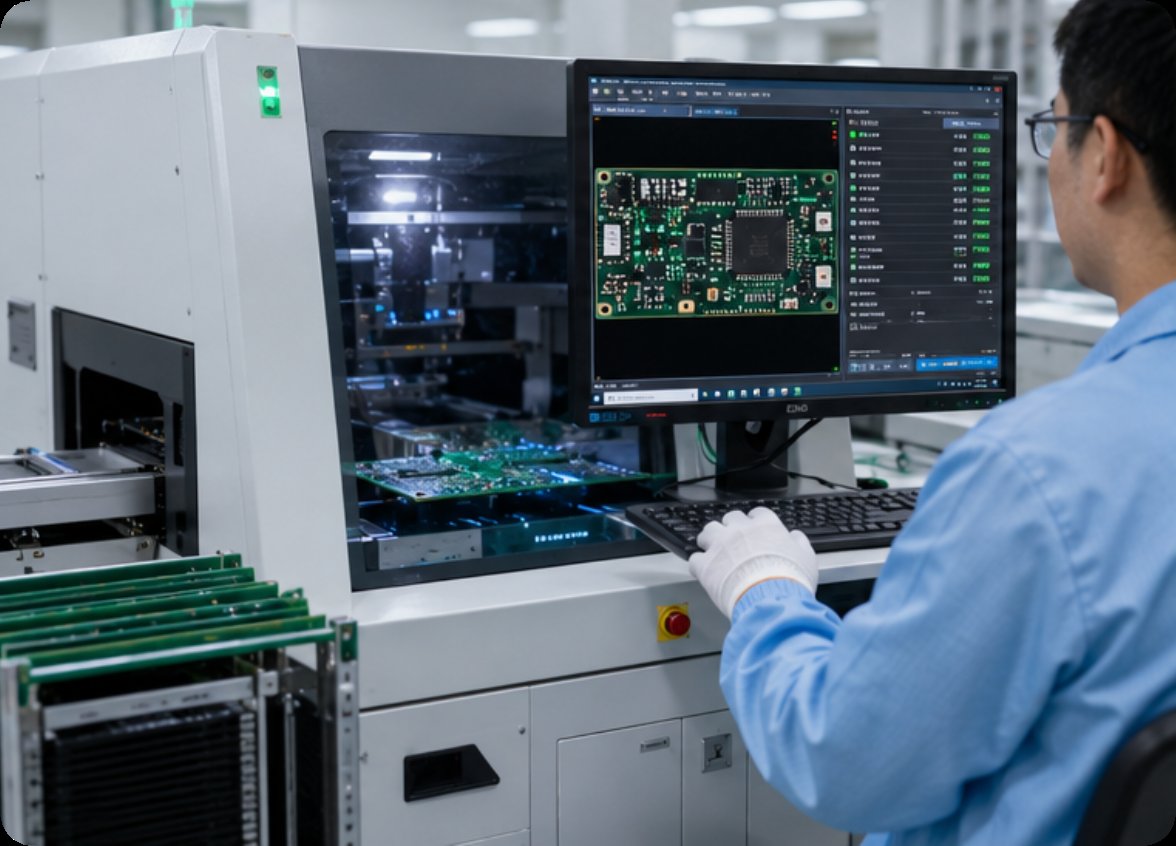

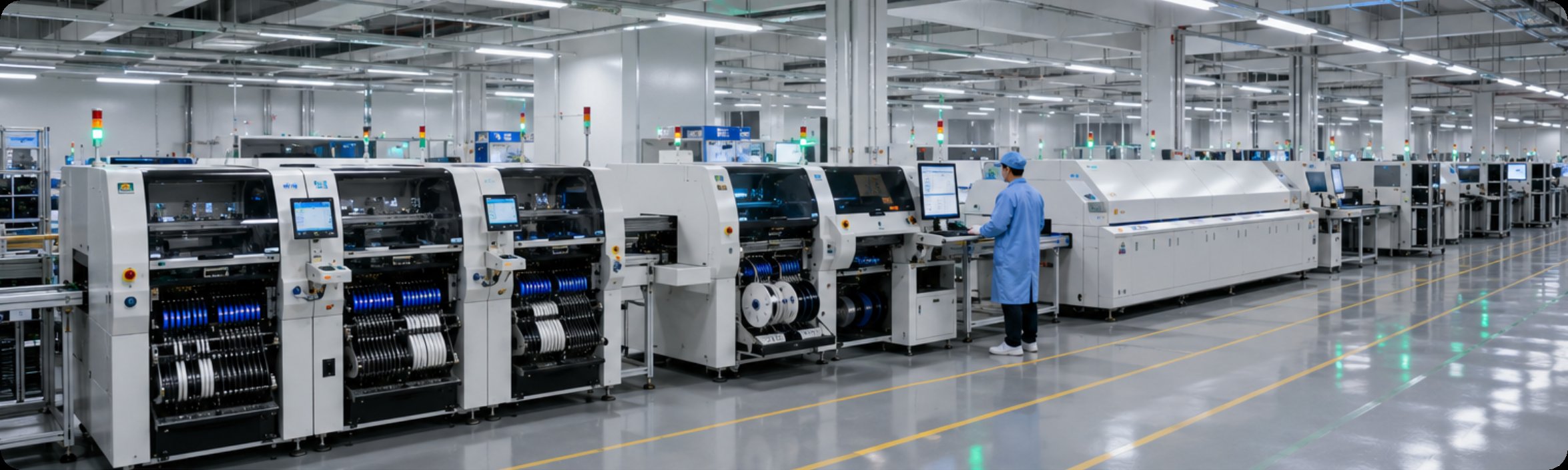

Automated Optical Inspection (AOI) is the workhorse of modern PCB quality control. Every board coming off our line passes through high-resolution cameras that check solder joints, component placement, and polarity. For hidden defects like BGA voids or micro-cracks, we deploy X-Ray inspection. These two technologies alone catch over 95% of common assembly defects. When you are producing custom PCBA for industrial motherboards or smart home devices, this early detection saves weeks of troubleshooting downstream.

ICT and FCT: Where Theory Meets Reality

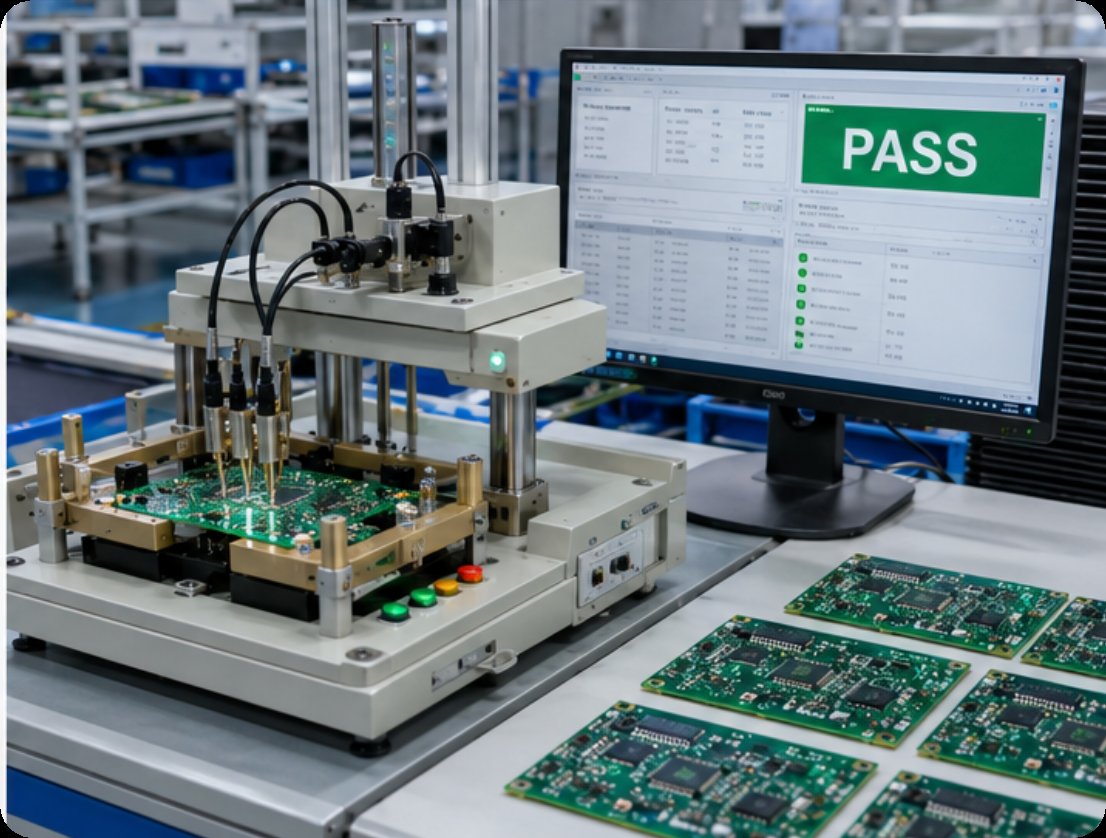

In-Circuit Testing (ICT) verifies that every component is correctly placed, soldered, and functioning electrically. Functional Circuit Testing (FCT) then simulates real-world operation – powering up the board, loading firmware, and checking signal integrity. For products like Bluetooth thermometers or portable projectors, FCT is where we validate that the WiFi module connects, the temperature sensor reads accurately, and the display renders properly. This two-stage approach ensures that no board leaves our facility with latent electrical faults.

Combining Products and Services for Maximum Quality Assurance

Here is where the magic happens. We don't just test individual components – we test the entire integrated solution. Take two of our most demanding products: the industrial motherboard and the rugged tablet. Both require extreme reliability in harsh environments. The industrial motherboard, used in factory automation, must withstand vibration and temperature swings. The rugged tablet, deployed by field service technicians, needs to survive drops and moisture.

For these products, we combine multiple services into a cohesive quality workflow. First, our Industrial PC PCBA service handles the complex multi-layer board design and assembly. Then, we apply PCBA Three-Proofing Paint to protect against moisture, dust, and chemical exposure. Finally, every unit goes through 48-hour aging tests under elevated temperature and humidity to simulate years of operation in days. This layered approach ensures that when a customer receives their order, it has been validated far beyond standard industry benchmarks.

The Synergy Between Product Design and Testing

Quality testing isn't a standalone activity – it is deeply intertwined with product design. When we work on a handheld game console or a custom PC, our engineering team collaborates with the testing team to design for testability (DFT). This means adding test points, selecting components with built-in self-test features, and optimizing the board layout for AOI access. The result? Faster testing cycles, higher coverage, and lower costs per unit. It is a virtuous cycle that starts at the design phase and continues through production.

Real-World Applications Across Industries

Our comprehensive PCB testing framework serves diverse industries with varying requirements:

Automotive Electronics: For in-vehicle infotainment systems and ADAS controllers, we implement 100% X-Ray inspection on every BGA joint. A single void in a power management IC could lead to intermittent failures on the road. Our Automotive Electronics PCBA service includes extended burn-in testing at 85°C for 72 hours to ensure reliability in engine compartments.

Medical Devices: Bluetooth thermometers and patient monitoring systems demand zero-defect quality. We combine ICT with functional testing that simulates actual patient use scenarios. Each device's calibration is verified against NIST-traceable standards, and results are recorded in our traceability system for FDA audit readiness.

Industrial IoT: Smart sensors and edge computing modules deployed in factories need to operate 24/7 for years. Our aging test protocol for these devices includes power cycling, communication stress tests, and ESD immunity checks. We have found that 48 hours of accelerated aging can reveal infant mortality issues that would otherwise surface after deployment.

Consumer Electronics: Portable speakers, smart home hubs, and handheld gaming devices benefit from our high-volume testing approach. We use flying probe testers for quick verification of prototype runs, then transition to custom fixture-based FCT for mass production. This flexibility allows us to learn more about our manufacturing capabilities and scale from 100 to 100,000 units without compromising quality.

The ROI of Prevention: A Concrete Example

Consider a recent project for a custom PC manufacturer. They were experiencing a 2% field failure rate in their power supply units. After implementing our full testing protocol – including ICT, FCT, and 24-hour burn-in – the failure rate dropped to 0.05%. The cost of testing added $2.50 per unit, but the savings from reduced warranty claims and returns amounted to $12.00 per unit. That is a 380% return on their testing investment. More importantly, their customer satisfaction scores improved dramatically, leading to repeat orders and referrals.

Why Our Approach Works

Our quality control system isn't just about catching defects – it is about preventing them. Every test result feeds back into our SMT process parameters. If we see a trend in solder paste volume variation, we adjust the printer. If certain components show higher failure rates, we work with suppliers to improve incoming quality. This closed-loop approach means that each batch gets better than the last. And because we offer free consultation and quotation, you can evaluate our testing capabilities without any upfront commitment.

Take the Next Step Toward Zero-Defect Manufacturing

Quality testing isn't an expense to minimize – it is an investment to optimize. Whether you are prototyping a new handheld game console or ramping up production of industrial motherboards, the right testing strategy can save you money, time, and reputation. At NEWEI, we combine ISO-certified processes with dedicated project manager support to ensure your project meets the highest standards. Contact us today for a free consultation and see how our comprehensive PCB assembly testing can transform your supply chain.
