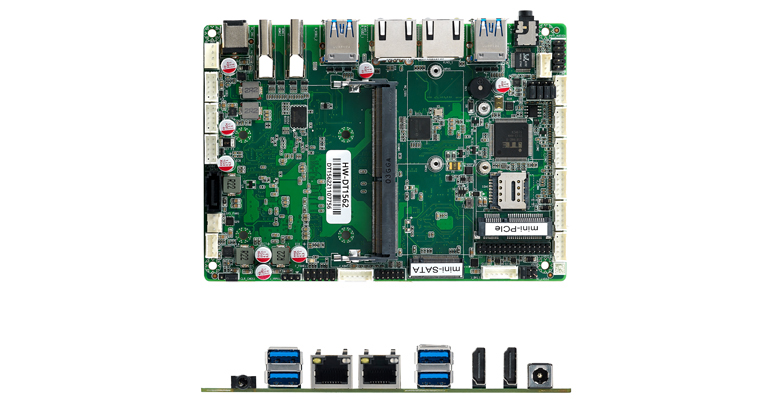

NW-DT1562 3.5 Inch Industrial Motherboard | Intel Core i3 Embedded Board
Product Specifications
| Specification | Details |
|---|---|
| CPU | Intel Core i3-1115G4, dual-core 4 threads, turbo up to 4.1GHz, TDP 15W (Tiger Lake) |
| Display | Triple display output |
| Memory | DDR4 SO-DIMM single slot, up to 16GB |
| Storage | mini-SATA + mini-PCIe |
| Network | 2x Gigabit LAN ports |
| Interfaces | Rear USB3.0, onboard multi-channel RS232, LVDS headers, audio pin headers |
| Form Factor | Ultra-thin embedded motherboard |
| Power Supply | DC 12V |
Technical Capabilities
Detailed Specifications
Model HW-DT1562 CPU Intel® CoreTM i3-1115G4, up to 4.10G, Dual-core Display Support Triple display simultaneously： 2*HDMI: resolution up to 4096x2160@24Hz 1*LVDS/eDP: LVDS, resolution up to 1920x1200@60Hz eDP, resolution up to 4096x2160@60Hz Memory DDR4-3200,1*SO-DIMM, up to 16 GB Storage 1 * SATA2.0 7P Connector 1 * mSATA（3.0） Expansion Interface 1*M.2 support SSD/Wifi/4G 1*Mini-PCIe support Wifi with mSATA/4G/BT selectable Ethernet 2*Intel® 1Gbps PCIe Ethernet Controller, RJ45 Audio Realtek® HDA Codec, with MIC/Line-out and Amplifier 1 * Front Audio Header (Line-Out + MIC) 1 * Amplifier Header COM 4 * RS232(Header)+2 * RS232/RS485 (Wafer) USB 2 * USB3.0 (Rear I/O, TYPE-A) 8 * USB2.0 (Internal, Header) Other Ports 1 * Micro SIM Card Slot 1 * Keyboard and Mouse Header 1 * System FAN Header 1 * Front Panel Header 1 * GPIO Header 1 * CMOS Clear Jumper System Windows10, Linux Temperature Storage: -20~75℃ Operating: -15°~60℃ BIOS AMI UEFI BIOS (Support Watchdog Timer) Power Input DC 12V 1 * Power Input Connector Factor 3.5 inch (146mm * 105mm)
NW-DT1562 Industrial Motherboard | Embedded Computing Solution
The NW-DT1562 is a high-performance industrial embedded motherboard designed for demanding industrial automation, embedded computing, and IoT applications. Its robust design ensures stable 24/7 operation in demanding environments.
Key Features
- Industrial Grade Design - Built for 24/7 continuous operation
- Fanless Cooling - Passive thermal solution for silent operation
- Rich I/O Interfaces - USB, COM, Gigabit LAN, HDMI, LVDS
- Wide OS Support - Windows 10/11, Linux compatible
Industrial Applications
The NW-DT1562 is ideal for industrial control systems, automation equipment, digital signage, embedded computing platforms, and IoT gateway applications.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- OEM and ODM customization services
- Complete PCBA production capability
- Strict quality management systems
- Long lifecycle product support
- Global engineering support services
Request A Quote
Contact NEWEI today for your industrial motherboard requirements.
Download Details
