Product Assembly, DIP Assembly and PCBA Three-Proofing Paint: A Buy List Built for the Order Acknowledgement

A buy list for electronics manufacturing usually dies before the first board is built, and it dies quietly. The document says what to buy, but not how each line will be verified, who signs the result, or what happens when a line fails. Buyers then discover the gaps during production, when every question costs schedule instead of costing a sentence. We see this most often on orders that combine three services, because each service behaves differently at exactly the point a purchase list is written.

That is the angle this article takes: a single list, three lines, three different kinds of proof. The Product Assembly line earns its value through acceptance terms. The DIP Assembly line earns it through named equipment and certifications. The PCBA Three-Proofing Paint line earns it through coverage and a keep-off list. Write each line its own way and the whole order becomes easier to audit.

What the Quote Sheet Answers and What It Delays

A quote sheet is honest about process and silent about proof. Ours follows the same mechanism every time: pricing is worked out from the customer's BOM and GERBER documents, so the sheet can state the process route in detail. On an smt assembly solutions order it will tell you which placement route, which soldering method and which inspection gates the line intends to run. What it deliberately delays is the acceptance conversation, because acceptance depends on details the quote cannot see yet: which AQL level you sample at, which components must stay uncoated, which market the certification must match. Those details belong on the buy list, and the rest of this article shows where each one lands.

Three Rows That Behave Nothing Alike

Treat the three lines as three dialects. The finished-goods row is read against a sampling plan. The through-hole row is read against a floor plan, because its strength is the equipment named on it. The coating row is read against a map of the board, since its entire risk lives in where paint must not reach. One checklist written in a single voice will flatten exactly the distinctions that protect you, so each row below gets its own vocabulary.

The Finished-Goods Row and Its Acceptance Terms

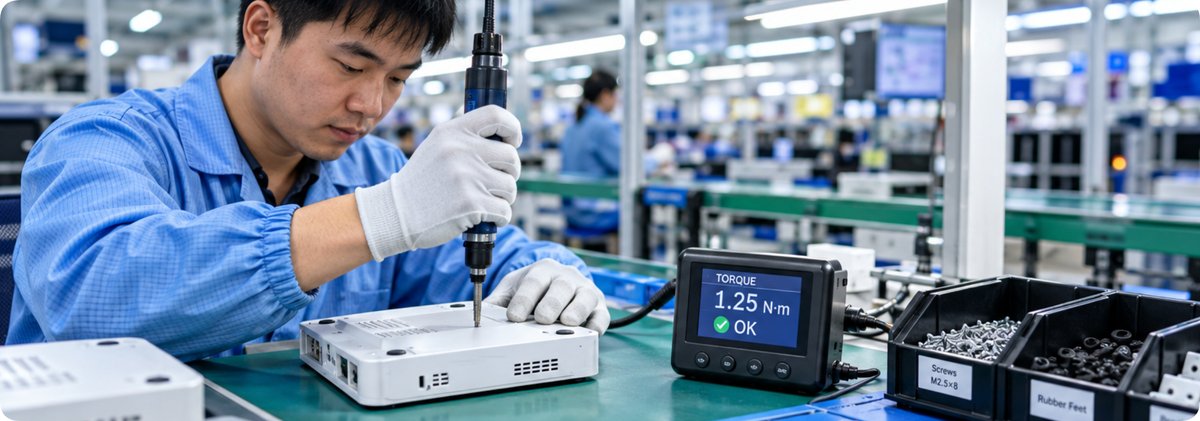

The row that covers finished-goods build should be the easiest to write, because the acceptance terms are already standing on our floor. Assembly runs with 95% skilled workers, one person per position, under strict SOP standards covering work techniques, quality criteria, tooling and statistical analysis. Online QC performs 100% full inspection while QA samples against AQL standards, and before packaging and shipment the quality department runs an OBA unboxing check. Two people inspect the whole assembly process together, so no defect waits for one pair of eyes to notice it. The line itself carries electric screwdrivers, magnifying glasses, torque meters, dispensing machines and test racks, with strict material-area division to prevent mixed parts and boards. When this row names its sampling level and its pre-shipment check, the confirmation that comes back is a schedule promise you can audit, not a compliment.

Through-Hole Rows That Name Their Equipment

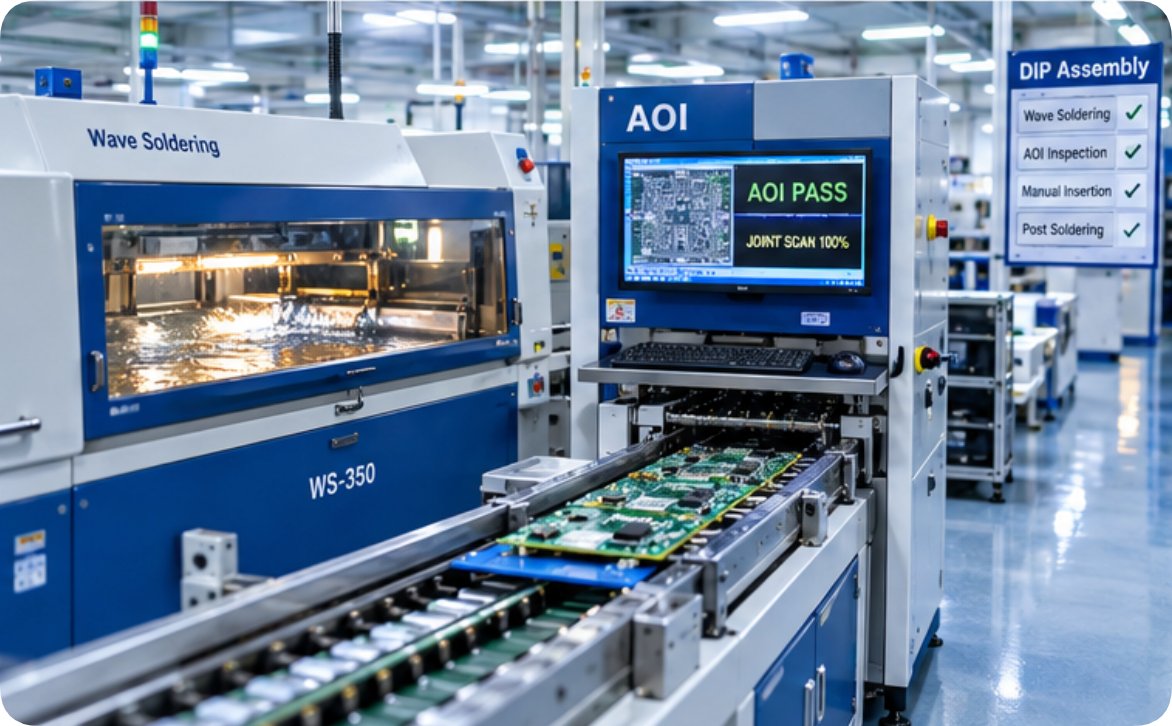

The through-hole row is different: its credibility sits in hardware and management, because plugin work is the most manual part of PCBA processing. Our floor runs four insertion lines, plugin AOI for component and solder-joint defects, four wave-soldering units, a rear-welding section of 56 stations, and four washing machines. Around them sit automatic slitting, automatic dispensing and automatic spot-welding equipment, plus fixtures that hold consistency where hands would drift. The row should also carry its certification, matched to the destination market: ISO9001:2015 as the base, ISO13485 where the board enters medical hardware, IATF16949 where it enters a vehicle. A buyer who writes "wave soldering, AOI, certified line" into this row gets a factory answer in return; a buyer who writes only "through-hole" gets a price and a shrug.

A Coating Row That Names What It Skips

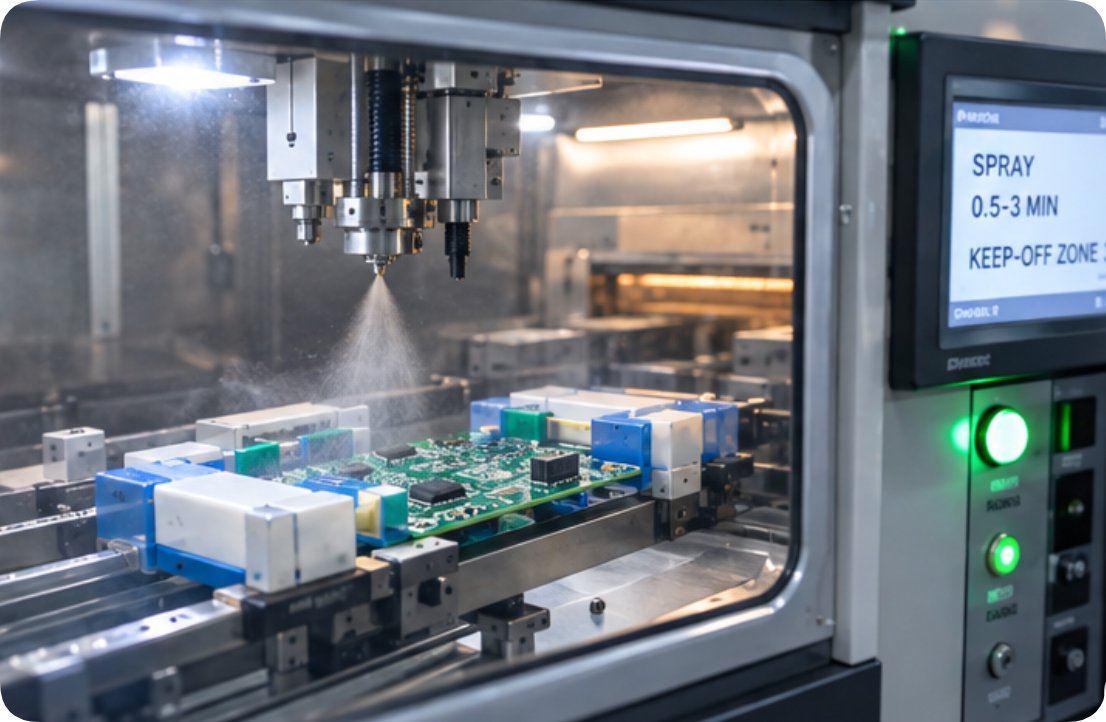

The coating row is the one buyers most often leave blank, and the one where a blank costs the most. Traditional manual painting risks poor consistency, uneven thickness, trapped impurities, and seepage into LCD windows or sockets. A professional spraying line avoids exactly these failures: fan-shaped spraying combined with needle spraying covers varied component surfaces, carriers hold large boards up to 550 x 470 mm so edges spray evenly, dense high-foot components are handled, and boards can be processed on both sides with baking and curing in one pass, averaging 0.5-3 minutes per board under a dedicated engineer's machine program. The critical entry on this row is the keep-off list. Connectors, antennas, WiFi modules and heat sinks can all be selectively protected from spray, but only if the list travels with the order. Name them, and the coverage map comes back verifiable.

What the Acknowledgement Can Confirm

An acknowledgement is where promises turn into records, and it can only confirm what the buy list carried. Within our electronics manufacturing services scope, the returned document should restate the sampling level for finished goods, the pre-shipment check, the certification matched to your market, and the coating keep-off list exactly as submitted. Anything you left vague stays vague on paper too, which is why the acknowledgement rewards a precise list rather than a longer one. Buyers sometimes treat this as paperwork at the end of negotiations; we read it as the moment the order stops being a conversation and starts being traceable.

Every Row, Checked the Same Way

The discipline across all three lines fits one view, and the table below is how we suggest reviewing your own list before any signature.

Send the Drawing Package Before the Price Talk

Every habit in this article compresses into one instruction: send the full package early. BOM, GERBER files, the keep-off list and the target certification together let a supplier quote against reality instead of assumptions, and they turn the later acknowledgement into a short confirmation instead of a negotiation. If your project is still at the layout stage, our quick sampling of PCB circuit boards service can put first boards in your hands while the buy list is being finished, so the two documents arrive at the factory together. A list that survives contact with the acknowledgement is not more paperwork; it is the cheapest inspection you will ever run.
