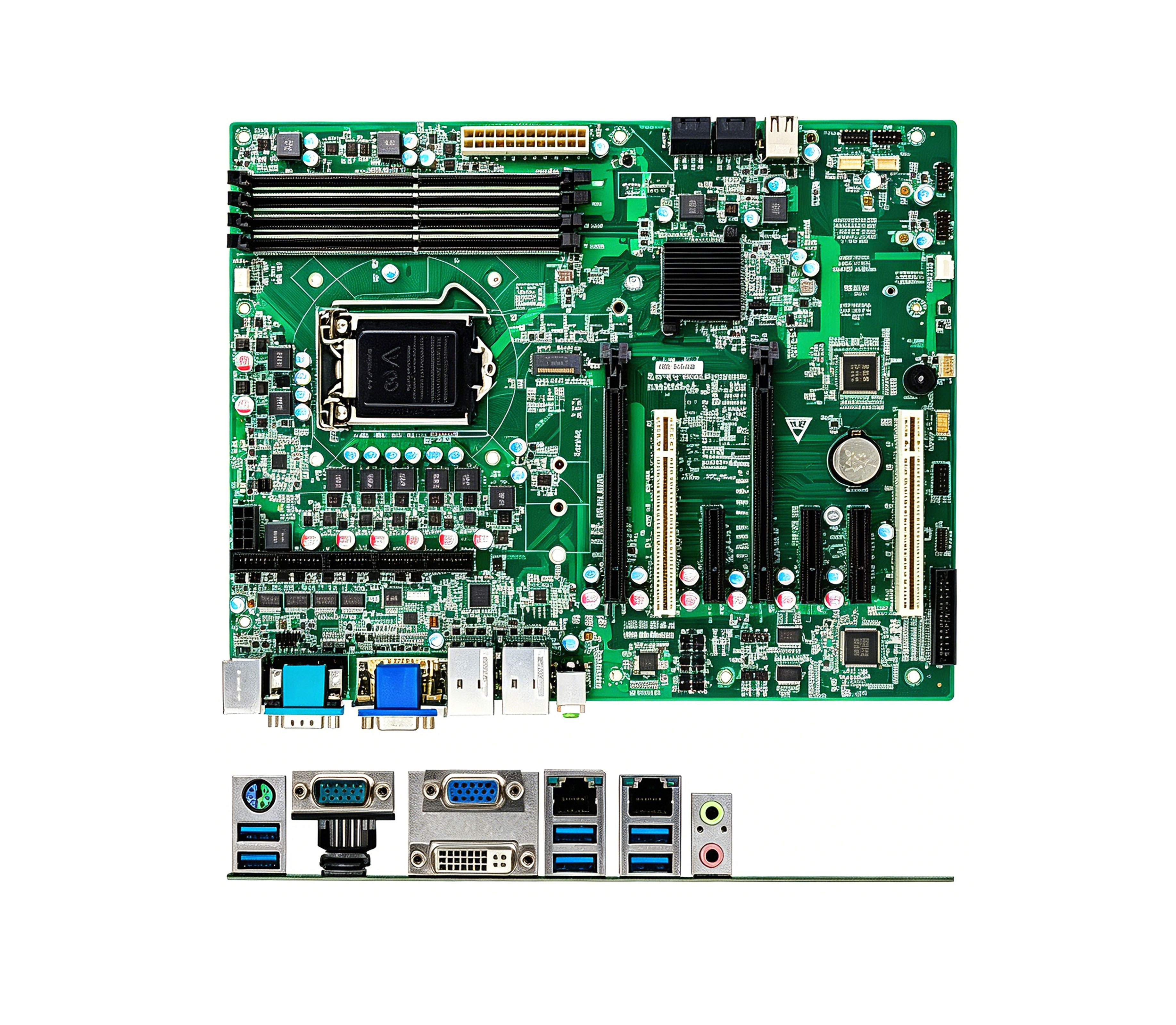

IMB110 Industrial Motherboard (H110) | LGA1151 Embedded IPC Board
Product Specifications
- Product Type: Machine Vision AI Dedicated Video Server Motherboard
- Processor: Supports Intel® LGA1151 6th/7th/8th/9th Gen Celeron/Pentium/Core i3/i5/i7/i9 series processors
- Chipset: Intel® H110 Chipset
- Memory: 2* DDR4 DIMM slots, supports 2133/2400/2666MHz, max 32GB (16GB per DIMM)
- LAN: 2* Intel GbE – LAN1: Intel I211AT, LAN2: Intel I219LM
- Display: Triple display outputs – DVI-D + VGA + HDMI, supports independent triple display
- Storage: 3* SATA 3.0 (supports SATA RAID 0/1/5/10), 1* M.2 (2242/2280) socket supports SATA SSD
- USB: 4* USB3.0 Type A (integrated with RJ45 on board edge), 2* USB2.0 Type A (integrated with PS/2 on board edge), 2* USB2.0 onboard for USB Dongle preset, 2* USB2.0 pin headers
- Expansion Slots: 1* PCIe*16 (x16 signal), 5* PCI (32-bit), 1* PCIe*4 (x4 signal)
- OS Support: Windows 7 / 10 / WES7 / Linux, 32-bit / 64-bit
- Dimensions: 305mm * 244mm
Technical Capabilities
IMB110 Industrial Motherboard (H110) | LGA1151 Embedded IPC Board
The IMB110 Industrial Motherboard is based on the Intel® H110 chipset and supports LGA1151 Intel® 6th and 7th generation Core™ processors. It is designed for embedded industrial computing systems, IPC platforms, automation control equipment, digital signage, and long lifecycle industrial applications.
As a stable and cost-effective embedded motherboard platform, IMB110 provides reliable computing performance for industrial environments where long-term operation, system stability, and compatibility are critical requirements.
This platform is widely used in industrial PCs, factory automation systems, kiosk terminals, control cabinets, and edge computing devices.
Key Features
- Intel® H110 chipset industrial motherboard
- LGA1151 support for 6th/7th Gen Intel Core processors
- Dual-channel DDR4 memory support
- Multiple display outputs (VGA / DVI / LVDS depending on configuration)
- Rich I/O interfaces for industrial integration
- USB 3.0 / SATA 6Gb/s support
- Dual Gigabit LAN support
- Multiple COM ports for industrial devices
- 24/7 continuous operation capability
- Long lifecycle embedded platform design
Industrial Computing Applications
IMB110 is widely deployed in industrial computing environments where reliability and long-term availability are required. It is suitable for automation control systems, production line monitoring, industrial HMI systems, and machine control applications.
Its stable architecture ensures consistent performance in factory environments and mission-critical industrial systems.
Automation & Control Systems
The motherboard can be integrated into industrial automation systems for equipment control, process monitoring, and production data acquisition.
With multiple COM ports and flexible expansion options, IMB110 supports a wide range of industrial devices and communication protocols.
Industrial PC & Embedded Systems
IMB110 is commonly used in IPC (Industrial PC) systems and embedded computing platforms. It is suitable for compact industrial computers, edge controllers, and embedded workstation systems.
Its compatibility with Intel 6th/7th Gen processors allows manufacturers to balance performance and cost in embedded system design.
HMI & Industrial Display Systems
The platform supports integration into HMI (Human Machine Interface) systems, industrial touch terminals, and operator control panels.
It provides stable graphics output for industrial visualization and monitoring applications.
Networking & Connectivity
- Dual Gigabit Ethernet for industrial networking
- USB interfaces for peripheral integration
- Serial COM ports for industrial equipment
- SATA storage support for system deployment
- Expansion slots for customization
OEM & ODM Manufacturing Support
NEWEI provides OEM and ODM services for industrial motherboard platforms including IMB110. We support BIOS customization, hardware modification, I/O configuration, and full system integration services.
From prototype development to mass production, we help customers build reliable industrial computing products for global markets.
Related Industrial Computing Products
- IMB170 Machine Vision Motherboard
- IMB760 Machine Vision Motherboard
- OMW-N2C19 AI Computing Motherboard
Related Manufacturing Services
Why Choose NEWEI
- Industrial motherboard manufacturer
- OEM / ODM customization capability
- Stable long lifecycle supply
- Full PCBA manufacturing support
- Global industrial application experience
Request A Quote
Looking for a reliable industrial motherboard solution? Contact NEWEI to discuss your embedded IPC, automation or industrial computing project requirements and get a customized OEM/ODM solution.
