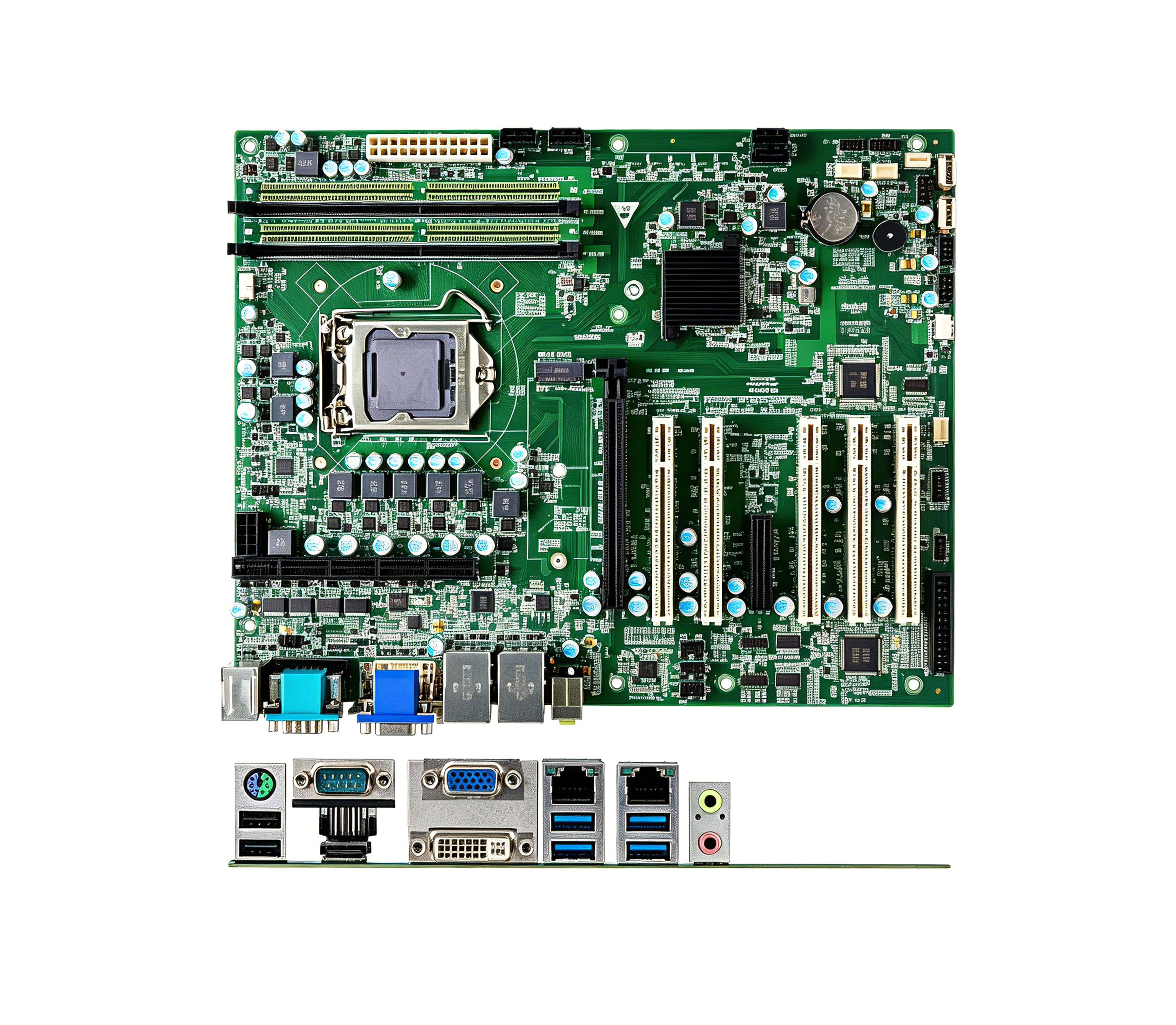

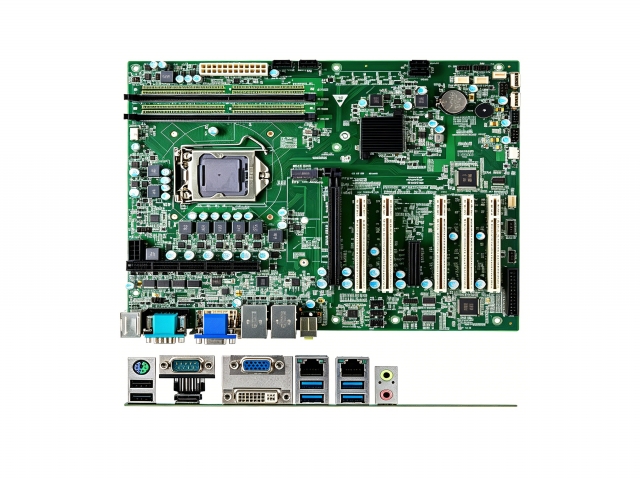

IMB170 Machine Vision Motherboard | Intel Q170 Industrial ATX Board
Product Specifications
- Product Type: Machine Vision AI Dedicated Video Server Motherboard
- Processor: Supports Intel® LGA1151 6th/7th/8th/9th Gen Celeron/Pentium/Core i3/i5/i7/i9 series processors
- Chipset: Intel® Q170 Chipset (optional C236 supports E3 V5 & V6)
- Memory: 4* DDR4 DIMM slots, supports 2133/2400/2666MHz, max 64GB (16GB per DIMM)
- LAN: 2* Intel GbE – LAN1: Intel I219LM, LAN2: Intel I211AT
- Display: Triple display outputs – DVI-D + VGA + HDMI, supports independent triple display
- Storage: 3* SATA 3.0 (supports SATA RAID 0/1/5/10), 1* M.2 (2242/2280) socket supports high-speed low-latency NVMe SSD (PCIe*4) or SATA SSD
- USB: 6* USB3.0 Type A (integrated with RJ45 on board edge), 2* USB2.0 onboard (routed to rear panel for USB Dongle preset), 2* USB2.0 pin headers (reserved for front panel expansion)
- Expansion Slots: 1* PCIe*16 (x8 signal), 2* PCIe*4, 1* PCIe*4 (x1 signal), 2* PCI (32-bit)
- OS Support: Windows 7 / 10 / WES7 / Linux, 32-bit / 64-bit
- Dimensions: 305mm * 244mm
Technical Capabilities
IMB170 Machine Vision Motherboard | Intel Q170 Industrial ATX Board
The IMB170 Machine Vision Motherboard is a reliable industrial ATX platform based on the Intel® Q170 chipset. Designed for machine vision systems, industrial automation equipment, manufacturing control systems, intelligent inspection platforms, and embedded computing applications, the motherboard combines stable performance, rich expansion capabilities, and long-term industrial reliability.
Supporting Intel® 6th and 7th Generation Core™ processors, the IMB170 provides a proven platform for industrial environments where stability, lifecycle support, and cost-effective deployment are critical. Its industrial-grade architecture enables manufacturers to develop machine vision solutions, industrial controllers, and intelligent manufacturing systems with confidence.
Featuring PCIe expansion slots, dual Gigabit Ethernet interfaces, multiple display outputs, industrial communication support, and flexible storage options, the IMB170 remains an excellent choice for OEM and ODM projects requiring dependable industrial computing performance.
Key Features
- Intel® Q170 industrial chipset
- Supports Intel® 6th and 7th Generation Core™ processors
- Industrial ATX form factor
- Dual Gigabit Ethernet interfaces
- Multiple PCIe expansion slots
- Support for machine vision frame grabber cards
- Multiple display outputs
- M.2 and SATA storage support
- Industrial communication interfaces
- Designed for 24/7 operation
- Windows and Linux compatibility
- Long lifecycle industrial platform
Reliable Platform for Industrial Applications
Industrial systems often prioritize reliability and long-term availability over frequent platform upgrades. The IMB170 is designed around Intel's proven Q170 chipset, offering a stable hardware environment that has been widely deployed in manufacturing, automation, transportation, and industrial control applications.
For OEM manufacturers and system integrators, platform stability reduces development risks and simplifies maintenance throughout the product lifecycle. This makes the IMB170 particularly attractive for projects that require long-term deployment and minimal hardware changes.
The motherboard's industrial design ensures consistent performance under demanding operating conditions while supporting the connectivity and expansion requirements commonly found in modern industrial systems.
Machine Vision System Integration
Machine vision applications require efficient image acquisition, reliable processing capabilities, and flexible hardware expansion. The IMB170 supports machine vision deployments through its PCIe architecture, allowing integration of industrial cameras, frame grabber cards, and image acquisition hardware.
Manufacturers use machine vision systems to automate quality inspection, dimensional measurement, barcode recognition, defect detection, and assembly verification. These applications require dependable computing hardware capable of processing image data continuously throughout production cycles.
The IMB170 provides a cost-effective platform for machine vision projects where long-term stability and proven hardware compatibility are critical requirements.
Intel Q170 Chipset Advantages
The Intel Q170 chipset offers a mature and highly reliable architecture that has been successfully deployed across a wide range of industrial applications. It provides robust support for industrial peripherals, storage devices, networking interfaces, and expansion hardware.
For manufacturers seeking a platform with extensive software compatibility and proven field performance, the Q170 chipset remains a strong choice for industrial computing solutions.
Its mature ecosystem also simplifies driver support, system integration, and long-term maintenance.
Flexible Expansion Architecture
Industrial computing systems often require specialized expansion hardware to support specific application requirements. The IMB170 provides multiple PCIe slots that enable integration of various industrial devices.
- Frame grabber cards
- Motion control cards
- Data acquisition systems
- Industrial networking cards
- AI accelerator modules
- Communication interfaces
- Custom industrial peripherals
This flexibility allows system designers to build customized solutions tailored to manufacturing, automation, inspection, and monitoring applications.
Industrial Automation Applications
Factory automation systems require reliable computing platforms capable of supporting machine control, process monitoring, and production management functions. The IMB170 provides the stability and connectivity necessary for these environments.
The motherboard can be deployed in production lines, robotic systems, packaging equipment, assembly stations, and industrial monitoring platforms where continuous operation is essential.
Its industrial-grade construction helps ensure dependable performance throughout extended operating periods.
Quality Inspection and Testing Systems
Automated inspection systems are widely used to improve product quality while reducing labor costs. The IMB170 provides a stable hardware platform for vision-based inspection solutions deployed in electronics manufacturing, automotive production, packaging operations, and precision assembly environments.
By supporting industrial imaging hardware and inspection software, the motherboard helps manufacturers improve consistency, reduce defects, and enhance production efficiency.
Human Machine Interface (HMI) Solutions
The motherboard supports multiple display outputs, making it suitable for industrial HMI terminals, operator workstations, and manufacturing dashboards.
These systems enable operators to monitor production processes, manage equipment, visualize operational data, and respond quickly to changing production conditions.
The IMB170 provides the performance and connectivity necessary for responsive and reliable user interaction.
Smart Manufacturing Applications
Industry 4.0 initiatives require interconnected computing platforms capable of collecting, processing, and transmitting production data. The IMB170 can serve as a core component of smart manufacturing architectures that integrate sensors, production equipment, analytics software, and enterprise systems.
Its networking capabilities and expansion flexibility make it suitable for a wide range of digital transformation projects within manufacturing environments.
Storage and Memory Capabilities
The motherboard supports high-capacity memory configurations and flexible storage options that accommodate industrial applications requiring large datasets and continuous operation.
M.2 SSD support enables faster system responsiveness, while SATA interfaces provide additional storage capacity for industrial software, image databases, and production records.
This combination delivers a balance between performance, reliability, and storage flexibility.
OEM & ODM Manufacturing Services
NEWEI provides comprehensive OEM and ODM services for industrial motherboards, machine vision systems, automation platforms, and custom PCBA projects.
Our engineering team supports BIOS customization, hardware modifications, interface integration, enclosure design, product validation, and full-scale manufacturing services.
From prototype development to mass production, NEWEI helps customers accelerate project timelines while maintaining strict quality standards and reliable supply chain support.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- Extensive machine vision experience
- OEM and ODM customization services
- Complete PCBA production capabilities
- Strict quality management systems
- Long-term lifecycle support
- Flexible manufacturing quantities
- Global engineering support
Frequently Asked Questions
Which processors are supported by the IMB170?
The motherboard supports Intel 6th and 7th Generation Core processors.
Is the IMB170 suitable for machine vision applications?
Yes. The motherboard supports frame grabber cards, industrial cameras, and machine vision processing systems.
What chipset does the motherboard use?
The IMB170 is based on the Intel Q170 industrial chipset.
Can expansion cards be installed?
Yes. Multiple PCIe slots support industrial expansion hardware.
Which operating systems are supported?
Windows and Linux operating systems are supported.
Can NEWEI provide OEM customization services?
Yes. OEM and ODM services are available including BIOS customization, hardware modification, and PCBA manufacturing.
