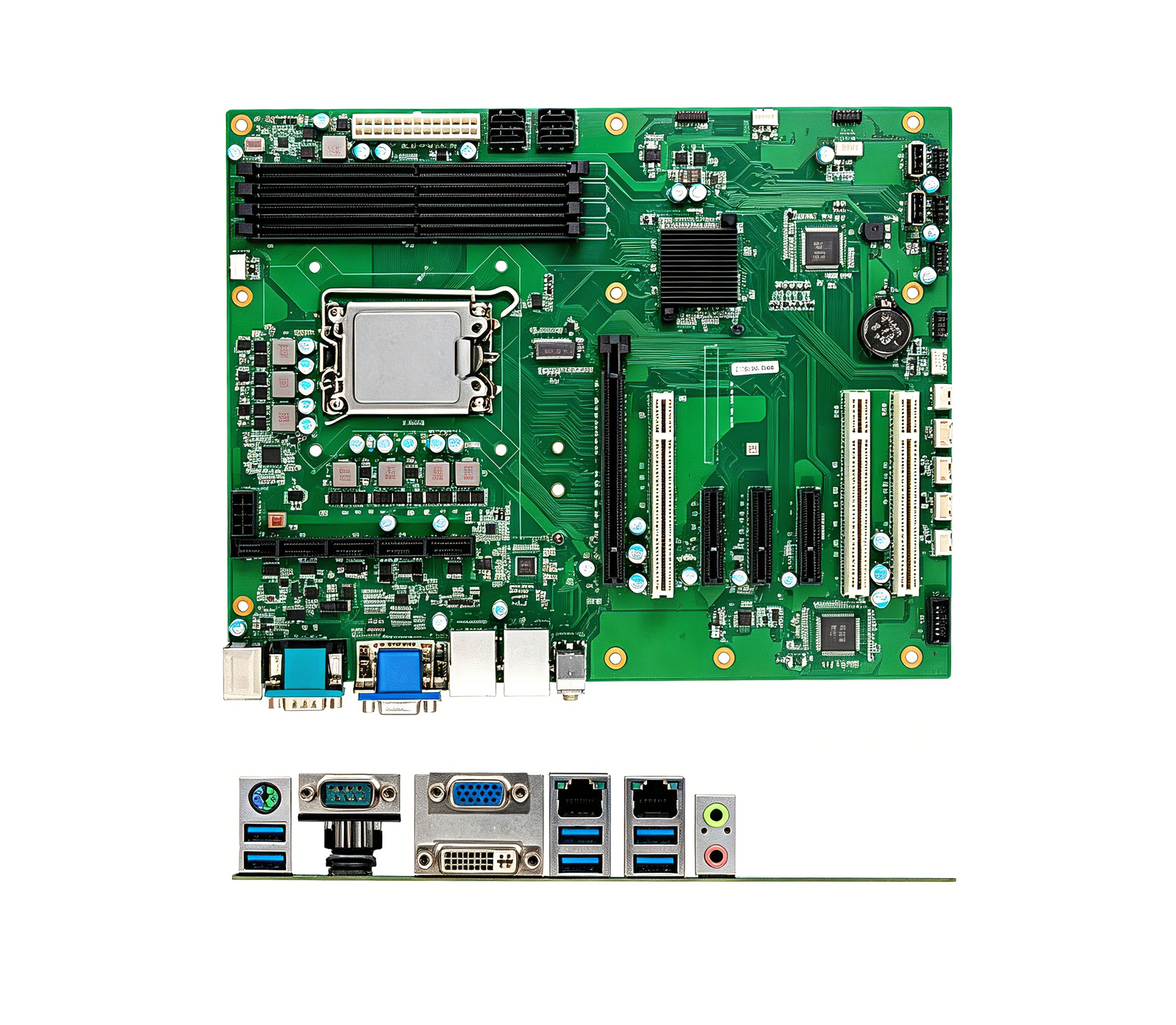

IMB760 Machine Vision Motherboard | Intel B760 Industrial ATX Board
Product Specifications
- Product Type: Machine Vision AI Dedicated Video Server Motherboard
- Processor: Supports Intel® LGA1700 12th/13th/14th Gen Celeron/Pentium/Core i3/i5/i7/i9 series processors
- Chipset: Intel® B760 Chipset
- Memory: 4* DDR5 DIMM slots, supports 4800/5600MHz, max 128GB (32GB per DIMM)
- LAN: 2* Intel GbE – LAN1: Intel I219LM, LAN2: Intel I226-V
- Display: Triple display outputs – DVI-D + VGA + HDMI, supports independent triple display
- Storage: 3* SATA 3.0, 1* M.2 (2242/2280) socket supports high-speed low-latency NVMe SSD (PCIe*4) or SATA SSD
- USB: 6* USB3.0 Type A (integrated with RJ45 on board edge), 2* USB2.0 onboard (routed to rear panel for USB Dongle preset), 4* USB2.0 pin headers (2 of which are reserved for front panel expansion)
- Expansion Slots: 1* PCIe*16 (x16 signal), 2* PCIe*4, 1* PCIe*4 (x2 signal), 3* PCI
- OS Support: Windows 10 / Linux
- Dimensions: 305mm * 244mm
Technical Capabilities
IMB760 Machine Vision Motherboard | Intel B760 Industrial ATX Board
The IMB760 Machine Vision Motherboard is a high-performance industrial ATX motherboard built on the Intel® B760 chipset and designed for machine vision systems, AI computing platforms, industrial automation equipment, intelligent inspection systems, and edge computing applications. Supporting Intel® 12th, 13th, and 14th Generation Core™ processors, the motherboard delivers powerful computing capabilities for demanding industrial workloads.
As manufacturing facilities continue to adopt artificial intelligence, machine vision inspection, and smart factory technologies, the demand for high-performance industrial computing platforms has increased significantly. The IMB760 provides the processing power, expansion flexibility, and industrial reliability required to support these next-generation applications.
With support for DDR5 memory, PCIe expansion slots, NVMe SSD storage, dual Intel Gigabit Ethernet ports, and multiple display outputs, the IMB760 serves as an ideal hardware foundation for OEM and ODM industrial computing projects.
Key Features
- Intel® B760 industrial chipset
- Supports Intel® 12th, 13th and 14th Generation Core™ processors
- Up to 128GB DDR5 memory support
- Dual Intel Gigabit Ethernet ports
- PCIe expansion for AI accelerator cards
- Support for industrial frame grabber cards
- M.2 NVMe SSD storage support
- Multiple SATA storage interfaces
- HDMI, VGA and DVI display outputs
- Industrial-grade design for 24/7 operation
- Long lifecycle support for OEM projects
- Windows and Linux compatibility
Designed for Machine Vision Applications
Machine vision systems require powerful computing resources capable of processing high-resolution images in real time. The IMB760 is specifically designed to support industrial cameras, frame grabber cards, AI acceleration modules, and advanced image processing software used in automated inspection environments.
Manufacturers increasingly rely on machine vision technology to detect defects, verify assembly quality, perform dimensional measurements, identify product variations, and improve production consistency. These applications generate large volumes of image data that must be processed rapidly and accurately.
The combination of Intel's latest processor architecture, DDR5 memory support, and PCIe expansion capability enables the IMB760 to handle demanding machine vision workloads while maintaining stable operation in industrial environments.
Intel B760 Platform Performance
Built around the Intel B760 chipset, the motherboard supports Intel's latest generation processors, providing significant improvements in computing performance, memory bandwidth, and system responsiveness.
The platform enables manufacturers to deploy advanced software applications including AI inference engines, machine learning models, industrial analytics systems, and high-performance visualization platforms.
Compared with previous-generation industrial motherboards, the IMB760 offers higher throughput, faster storage performance, and greater scalability, making it suitable for future industrial computing requirements.
AI Computing and Edge Intelligence
Artificial intelligence has become a critical component of modern manufacturing systems. The IMB760 provides an excellent platform for AI-powered applications including defect detection, object recognition, predictive maintenance, quality inspection, and intelligent process monitoring.
PCIe expansion slots allow integration of AI accelerator cards that significantly increase processing performance for deep learning workloads. This capability enables real-time AI analysis directly at the edge, reducing latency and improving operational efficiency.
By combining machine vision with artificial intelligence, manufacturers can automate quality control processes while reducing labor costs and increasing production accuracy.
Flexible Expansion Architecture
Industrial applications often require specialized hardware including frame grabber cards, motion control cards, GPU accelerators, data acquisition devices, and communication modules.
The IMB760 provides multiple PCIe expansion options that allow system integrators to customize configurations according to specific project requirements.
- Machine vision frame grabber cards
- AI accelerator modules
- Industrial communication cards
- Motion control systems
- Data acquisition hardware
- GPU computing solutions
- Industrial networking devices
This flexibility helps reduce development costs while enabling scalable system architectures.
Industrial Automation Applications
Industrial automation systems depend on reliable computing platforms capable of supporting monitoring, control, and data processing functions. The IMB760 provides the performance necessary for advanced automation environments.
The motherboard can be deployed in factory control systems, robotic workstations, automated production lines, and manufacturing execution systems that require continuous operation and stable performance.
Its industrial-grade design ensures long-term reliability even in demanding manufacturing environments.
Quality Inspection Systems
Automated quality inspection is one of the fastest-growing segments within industrial computing. Manufacturers use machine vision systems to inspect products for defects, dimensional accuracy, assembly correctness, and packaging integrity.
The IMB760 provides sufficient computing resources to process high-resolution image streams while supporting advanced inspection algorithms and AI-based analysis techniques.
This enables manufacturers to improve product quality while reducing inspection costs and increasing production efficiency.
Smart Factory Deployments
Industry 4.0 initiatives require intelligent computing platforms capable of integrating production equipment, sensors, analytics systems, and enterprise software. The IMB760 serves as a reliable foundation for smart factory infrastructure.
The motherboard supports edge computing architectures that enable local processing of manufacturing data while maintaining connectivity with cloud-based systems and centralized management platforms.
This hybrid approach improves responsiveness while supporting advanced manufacturing intelligence strategies.
Memory and Storage Performance
The motherboard supports up to 128GB of DDR5 memory, providing exceptional bandwidth for data-intensive applications. High-capacity memory configurations are particularly valuable for machine vision systems, AI inference engines, and industrial analytics platforms.
Integrated M.2 NVMe SSD support enables high-speed storage performance that improves application loading, image processing, and overall system responsiveness.
Additional SATA interfaces provide flexible storage expansion options for industrial deployments requiring large datasets and long-term data retention.
OEM & ODM Manufacturing Services
NEWEI provides complete OEM and ODM services for industrial motherboards, machine vision platforms, embedded computing systems, and industrial PCBA projects.
Our engineering team supports BIOS customization, hardware modifications, interface expansion, enclosure integration, system validation, and full-scale manufacturing services.
From prototype development to volume production, NEWEI helps customers accelerate product development while maintaining strict quality standards and reliable supply chain management.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- Extensive OEM and ODM experience
- Complete PCBA production capability
- Machine vision platform expertise
- Strict quality control systems
- Long-term lifecycle support
- Flexible manufacturing volumes
- Global engineering support services
Frequently Asked Questions
Which processors are supported by the IMB760?
The motherboard supports Intel® 12th, 13th, and 14th Generation Core™ processors.
Is the IMB760 suitable for machine vision applications?
Yes. The motherboard is specifically designed for machine vision systems and supports frame grabber cards, industrial cameras, and AI accelerator modules.
What is the maximum memory capacity?
The board supports up to 128GB DDR5 memory.
Does the motherboard support NVMe SSDs?
Yes. The integrated M.2 interface supports high-speed NVMe SSD storage devices.
Can AI accelerator cards be installed?
Yes. PCIe expansion slots allow integration of AI accelerator and GPU computing cards.
Which operating systems are supported?
The motherboard supports Windows and Linux operating systems.
Can NEWEI provide OEM customization services?
Yes. OEM and ODM services are available including BIOS customization, hardware modifications, PCBA manufacturing, and complete system integration.
Request A Quote
Looking for a reliable machine vision motherboard manufacturer? Contact NEWEI today to discuss your AI computing, machine vision inspection, industrial automation, or smart manufacturing project requirements and receive a customized OEM or ODM solution.
