Fig 1 – High-precision 3D AOI (left) detecting component coplanarity; AXI X-Ray (right) analyzing BGA ball integrity and voiding.

The NEWEI Quality Philosophy

In the high-reliability PCBA  sector—covering automotive Grade 1, medical Class II/III, and industrial IoT—"passing" is not an objective; it is a baseline. Many EMS providers rely on 2D visual checks, which are statistically blind to 40% of critical hidden defects. At NEWEI, we deploy a "Triad of Validation": 3D AOI for surface precision, X-Ray for structural integrity, and ICT/FCT for operational proof. If you can't measure it, you shouldn't ship it. Our 99.6% first-pass yield is a direct result of these non-negotiable quality gates.

Mastering PCBA Quality Control: Why 3D AOI, X-Ray, ICT/FCT, and Full Traceability are Non-Negotiable

By NEWEI Industrial Editorial Team | Advanced PCBA Manufacturing | May 2026

The electronics manufacturing landscape has shifted. As components shrink to 01005 sizes and BGA pitches drop below 0.4mm, the margin for error has effectively vanished. In 2026, the Automated Test Equipment (ATE) market isn't just about speed; it's about the depth of data. For automotive manufacturers, "Zero Defect" isn't a marketing slogan—it is a contractual mandate.

At NEWEI Industrial, we have optimized our shop floor around four pillars: Advanced Optical Metrology, Radiographic Deep-Imaging, Electrical Stress Testing, and a Cloud-Based Traceability Mesh. This comprehensive ecosystem ensures that every solder joint, via, and firmware flash is logged into our MES (Manufacturing Execution System), creating a permanent digital twin for every PCBA we produce.

1. 3D AOI & X-Ray: Beyond the Human Eye

Our Inline 3D AOI (Automated Optical Inspection) represents the first line of defense post-reflow. Unlike legacy 2D systems that suffer from shadows and glare, our 3D metrology uses Moiré fringe projection to reconstruct the volumetric profile of every solder joint. This allows us to detect Heel Fillet Insufficiency and Lifted Leads—defects that are visually "flat" but electrically unstable.

However, AOI is blind to what lies beneath. For BGA (Ball Grid Array), QFN, and LGA packages, our AXI (Automated X-Ray Inspection) is mandatory. We don't just "look" at balls; we quantify them. Our algorithms calculate:

• Void Area Percentage: Strictly maintained below 20% for automotive safety-critical boards.
• HIP (Head-in-Pillow): Detected via oblique 70-degree radiographic tilt.
• Wetting Angles: Measuring the interface between the solder ball and the pad copper.

2. ICT & FCT: Verifying Electrical Logic

While AOI and X-Ray prove the board looks correct, ICT (In-Circuit Test) and FCT (Functional Test) prove it thinks and acts correctly.

Our Flying Probe ICT units perform a high-speed "bed-of-nails" equivalent without the expensive fixture costs for NPI (New Product Introduction). We verify passive component values, check for micro-shorts, and perform "Power-Off" nodal analysis. For mass production, we utilize Custom FCT Fixtures that simulate the board’s end-use environment—applying real-world loads, LIN/CAN bus communications, and thermal stress.

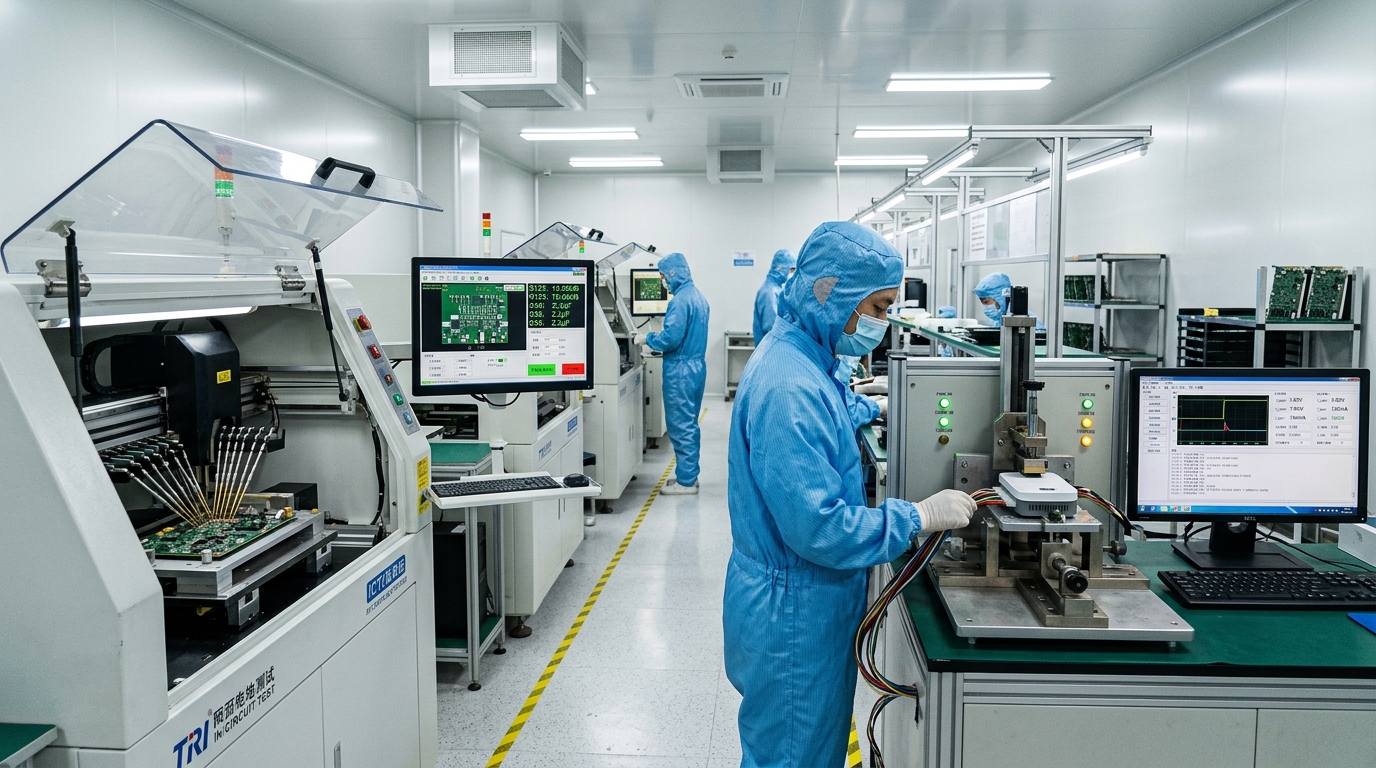

                                                                   Fig 2 – Flying probe ICT (left) measuring circuit nodes; specialized FCT station (right) performing LIN bus validation.

3. The Human Element: Patrol QC & FAI

Automation provides the data, but our Quality Engineers provide the wisdom. We implement First Article Inspection (FAI) for every single shift change or component reel swap. A batch is never released until the first 5 units are digitally verified against the Golden Sample.

Furthermore, Patrol QC audits happen every 60 minutes. Technicians equipped with rugged PDAs scan QR codes at each station, checking solder paste viscosity, feeder alignment, and reflow profile stability. This ensures that a process drift is caught within an hour, preventing thousands of dollars in rework.

4. 8D Root Cause & Closed-Loop Traceability

Traceability is the bridge between a factory and the field. Every PCBA at NEWEI receives a unique 2D barcode. Our MES Portal tracks:

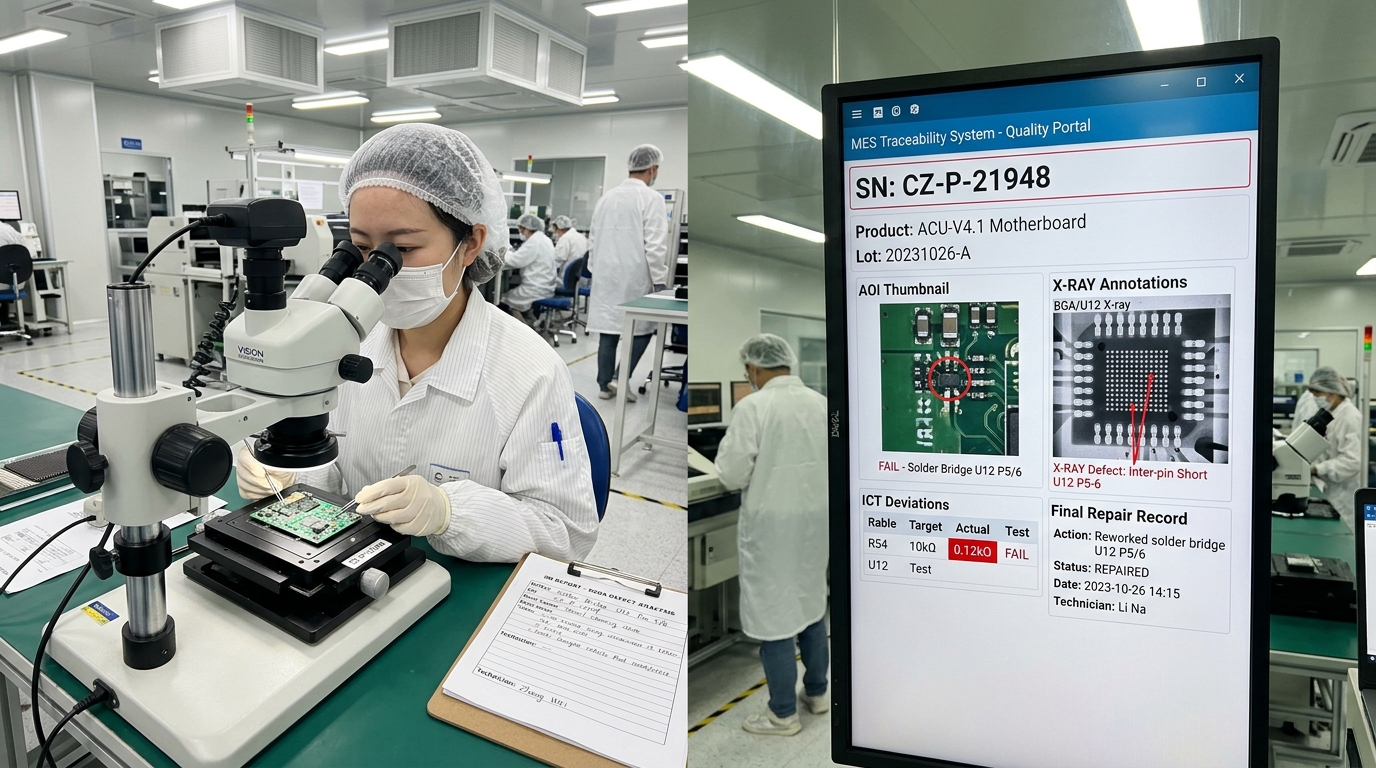

                                                          Fig 3 – Our Defect Analysis Lab (left) and the real-time MES traceability portal (right) used for 8D corrective actions.

The Numbers Behind the Quality

At NEWEI Industrial, we don't hide our metrics—we broadcast them across the factory floor. Our current live KPIs include:

• AOI False-Call Rate: <0.8% (Continuous AI model training)
• BGA Scan Coverage: 100% of BGA-mounted boards undergo AXI.
• 8D Response Time: Preliminary root cause within 24 hours; closure within 48 hours.

Conclusion: Your Reputation is Our Specification

Outsourcing your PCBA shouldn't feel like a gamble. When you choose NEWEI Industrial, you are investing in a Zero-Defect ecosystem. From the first 3D AOI scan to the final FCT handshake, we provide the data, the images, and the electrical proof that your product is ready for the world's toughest environments.

Partner with a Zero-Defect Leader

Want to see our X-Ray void analysis or ICT first-pass yield in person? We offer virtual and physical facility tours.
