Massage belt PCBA board
The Massage Belt PCBA board is the core electronic module of modern smart massage devices. It integrates motor drivers, control circuits, and power management systems to operate massage balls independently within a soft belt. The PCBA enables multi-mode vibration, rotation, and tapping massage, accurately targeting acupuncture points and relieving muscular tension. Designed for OEM manufacturers, it supports various belt sizes, ball placements, and massage programs for customized user experiences.
Technical Capabilities
Technical parameters of massage belt PCBA board
Control mode: computer type
Number of massage heads: 1
Gear adjustment: 6
Power supply: AC
Rated voltage (V): 220V
Vibration frequency (Hz): 50
Rated power (W): 24
Power cord length (m): 1
Massage Belt PCBA Board – High-Precision PCB Assembly for Smart Massage Devices
Overview: The Massage Belt PCBA board is the core electronic module of modern smart massage devices. It integrates motor drivers, control circuits, and power management systems to operate massage balls independently within a soft belt. The PCBA enables multi-mode vibration, rotation, and tapping massage, accurately targeting acupuncture points and relieving muscular tension. Designed for OEM manufacturers, it supports various belt sizes, ball placements, and massage programs for customized user experiences.
NEWEI’s massage belt PCBAs are manufactured with industrial-grade SMT assembly, BGA/X-ray inspection, and rigorous functional testing to ensure consistent performance and safety. With embedded microcontrollers, high-efficiency motor drivers, and advanced power management, the board delivers precise motion control for massage balls while maintaining long battery life and minimal heat generation. OEM clients can request custom firmware, sensor integration, and connector options for seamless integration into their smart massage belts.

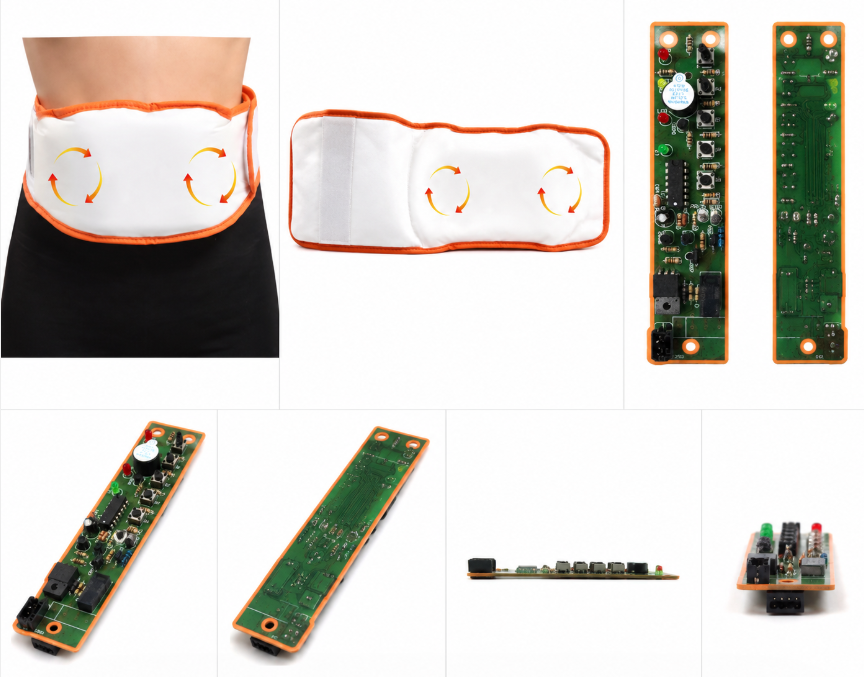

Fig 1 – Massage belt PCBA board with integrated motor drivers and control circuitry for smart massage devices.
Key Features of Massage Belt PCBA Boards
- High-precision motor drivers for independent massage ball control.
- Multi-mode massage support: vibration, rotation, tapping, and kneading.
- Embedded microcontroller for custom massage programs and safety monitoring.
- Low-heat power management ensuring long operation and user comfort.
- Industrial-grade assembly verified with BGA/X-ray inspection and functional testing.
- Customizable connector, size, and firmware options for OEM smart massage belts.
Applications of Massage Belt PCBA Boards
Our PCBA boards are suitable for a wide range of massage devices:
- Wearable massage belts for back, waist, and neck therapy.
- Portable massage devices for acupuncture point stimulation.
- Smart home wellness devices integrating IoT or mobile app control.
- OEM massage belts requiring multi-ball independent motion control.
- Health-focused wearable devices targeting muscle relaxation and stress relief.
Why Choose NEWEI for Massage Belt PCBA Manufacturing
NEWEI provides end-to-end PCB assembly services, including schematic design, PCB layout, component sourcing, SMT assembly, inspection, and firmware tuning. Our massage belt PCBAs deliver high reliability, precise control, and scalable production. OEM manufacturers benefit from reduced time-to-market, lower defect rates, and consistent quality, ensuring that end-users receive a premium, safe, and effective massage experience.
Contact NEWEI for Massage Belt PCBA Solutions
Take your smart massage device to the next level with reliable and precise PCBA boards from NEWEI.
Contact NEWEI (Newei Industrial)
Tel: +86-18925218989
Email: tiger.wang@richitek.com
Web: https://www.neweiodm.com/
