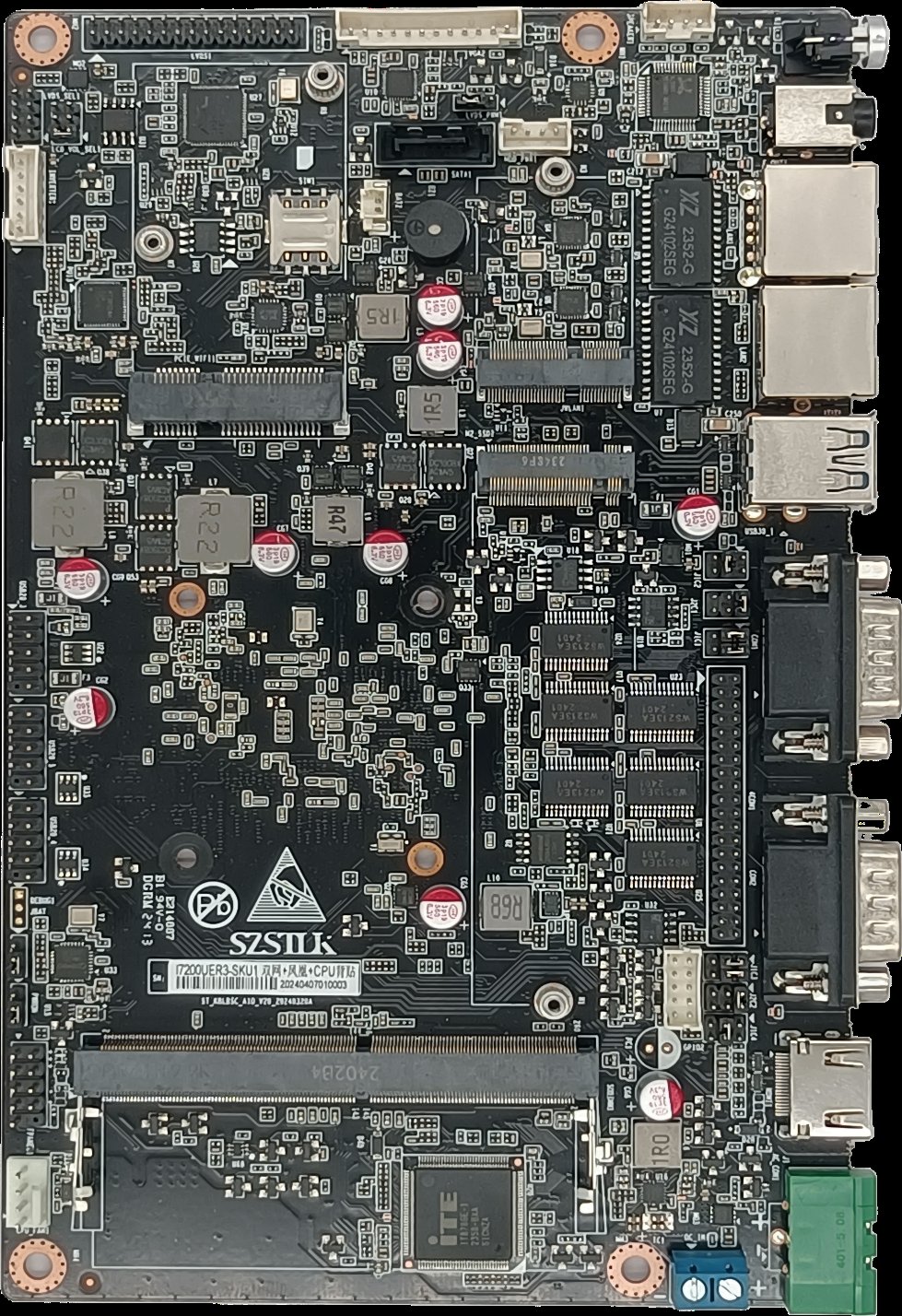

Kaby Lake DB02 3.5 Inch Industrial Motherboard | Intel Kaby Lake Embedded Board

Home / Products / Industrial Computing PCBA /

Kaby Lake DB02 3.5 Inch Industrial Motherboard | Intel Kaby Lake Embedded Board

Product Specifications

Specification	Details
CPU	Integrated Intel® Kaby Lake Series CPU
Motherboard Size	195mm ×120mm
Memory	SODIMM×1, DDR4-2133, Up to 32GB
Storage	SATA & NVMe SSD
Display	Integrated Intel® UHD Graphics, HDMI, LVDS, VGA, Max 3840×2160
Power Interface	12V 2PIN Phoenix terminal, 2PIN Phoenix terminal side pin
I/O Interface	USB3.0×2, HDMI×1, RJ45(Gigabit)×2, COM×2, 2-in-1 Audio×1
OS	Windows 10/11/Linux/Android

WhatsApp View More Details

SMT ASSEMBLY CAPABILITY OF NEWEI

NEWEI offers high-quality and highly reliable PCB assembly service. Our PCB assembly factory has 8 fully automatic high-speed surface mount production lines and uses the most advanced SMT PCB assembly equipment. Including automatic board loading machine, automatic solder paste printing machine, solder paste thickness detector (SPI, Solder Paste Inspection), multi-temperature zone reflow soldering machine, optical inspection equipment (Automatic Optical Inspection), X-ray inspection machine, baking machine, and PCB stencil cleaning machine, etc.

Printed Circuit Boards (PCBs)have changed the concept of soldering components with wire and creating a complicated and unreliable circuit. PCBs are very compact and offer reliable performance for a very long time. They take up very little space and deliver the expected results.

Nowadays, PCBs are used in almost every industry. Every product that requires some components and their interconnection uses a PCB. PCBs have gone through many changes in the past few decades. There have been many advancements, improvements, and new technologies. One of the leading PCB technologies is surface mount technology. It has supreme importance because it has further reduced the size of PCBs. The components used in the surface mount technology are minimal; the smallest SMD (surface mount device)has a dimension of 0.6mm x 0.30mm. SMT technology has significantly impacted the PCB industry and is widely used nowadays.

Technical Capabilities

Kaby Lake DB02 Industrial Motherboard | Embedded Computing Solution

The Kaby Lake DB02 is a high-performance industrial embedded motherboard...

Key Features

Industrial Grade Design
Fanless Cooling
Rich I/O Interfaces
Wide OS Support

Industrial Applications

Ideal for industrial control, automation, digital signage, embedded computing.

Request A Quote

Contact NEWEI for your industrial motherboard requirements.

Download Details

Tags: Industrial Motherboard /Embedded Board /Kaby Lake DB02 /

If you are interested in our products, please contact us.
