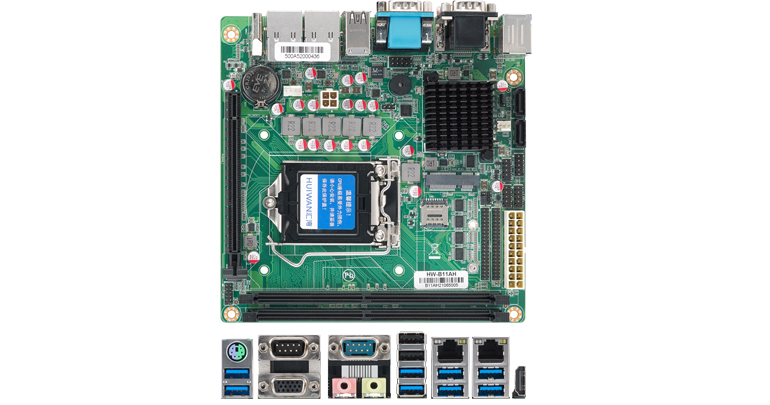

NW-B11AH Nano ITX Industrial Motherboard | Intel Multi-Gen Core Platform
Product Specifications
| Specification | Details |
|---|---|
| CPU Socket | LGA1151, supports 6th/7th/8th/9th Gen desktop Core / Pentium / Celeron |
| Chipset | Intel H110 |
| Form Factor | Nano-ITX |
| Display | VGA + HDMI dual display |
| Network | Dual Gigabit Ethernet ports |
| Interfaces | Multi-channel COM ports, multiple USB ports |
| Power Supply | Standard ATX power supply |
Technical Capabilities
Detailed Specifications
CPU Intel® 6th 、7th、8thand 9th Generation CoreTM i3/i5/i7, Pentium®, Celeron® CPU, LGA1151 Chipset Intel® H110, TDP 6W Display 1 * VGA (DB15/F): Support max resolution up to 1920x1200@60Hz 1 * HDMI (TYPE-A): Support max resolution up to 4096*2160@24Hz Memory DDR4-1866/2133, 2* non-ECC U-DIMM Slot, Up to 32 GB Storage 2 * SATA3.0 7P Connector 1 * Mini PCI-E Slot (mSATA3.0/4G/Wifi) Ethernet 2*RTL8111HS (10/100/1000 Mbps, RJ45) Audio Realtek ALC662 5.1 Channel HDA Codec, 1 * Front Audio Header (Line-Out + MIC) 1 * Line-Out + MIC 3.5mm Jack Expansion Slots 1 * PCI-E 16x Slot (PCI-E 3.0) COM 2 * RS232 (COM1/2, Connector) 1 * RS232/RS485 (COM3,Header) 7 * RS232 (COM4/5/6/7/8/9/10, Header) USB 8 * USB3.0 (Rear I/O, TYPE-A) 2 * USB2.0 (Rear I/O, TYPE-A) 6 * USB2.0 (Internal, Header) Other Ports 1 * PS/2 1 * Micro SIM Card Slot 1 * CPU FAN Header 1 * System FAN Header 1 * Front Panel Header 1 * GPIO Header 1 * CMOS Clear Jumper System Windows7/8.1/10, Linux Temperature Storage: -20~75℃ Operating: 0~60℃ BIOS AMI UEFI BIOS (Support Watchdog Timer) Power Supply ATX Standard (20P + 4P) 1 * ATX 4P CPU Power Input Connector 1 * ATX 20P Power Input Connector Factor MINI-ITX Standard (170mm * 170mm)
NW-B11AH Industrial Motherboard | Embedded Computing Solution
The NW-B11AH is a high-performance industrial embedded motherboard designed for demanding industrial automation, embedded computing, and IoT applications. Its robust design ensures stable 24/7 operation in demanding environments.
Key Features
- Industrial Grade Design - Built for 24/7 continuous operation
- Fanless Cooling - Passive thermal solution for silent operation
- Rich I/O Interfaces - USB, COM, Gigabit LAN, HDMI, LVDS
- Wide OS Support - Windows 10/11, Linux compatible
Industrial Applications
The NW-B11AH is ideal for industrial control systems, automation equipment, digital signage, embedded computing platforms, and IoT gateway applications.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- OEM and ODM customization services
- Complete PCBA production capability
- Strict quality management systems
- Long lifecycle product support
- Global engineering support services
Request A Quote
Contact NEWEI today for your industrial motherboard requirements.
