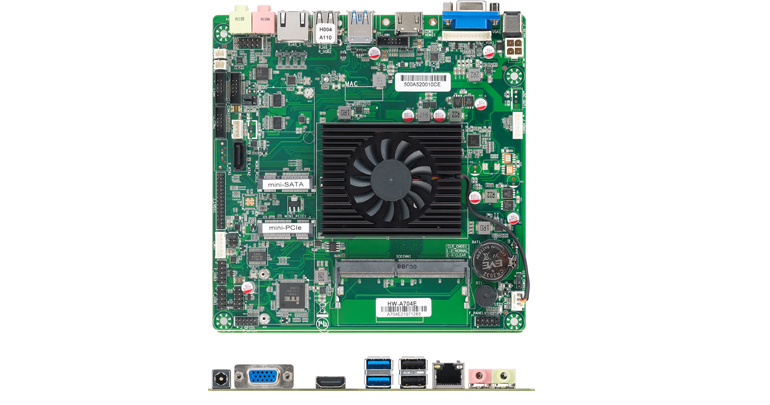

NW-A704 Mini ITX Industrial Motherboard | Intel Core i3 Embedded Board
Product Specifications
| Specification | Details |
|---|---|
| CPU | Intel Core i3-7020U dual-core, 2.3GHz, 3M Cache, TDP 15W |
| Display | VGA (1080P) + HDMI (1080P) + dual-channel LVDS/eDP |
| Memory | DDR4 SO-DIMM single slot |
| Expansion | Dual Mini-PCIe |
| Interfaces | Multi-channel COM, GPIO, audio headers, dual Gigabit LAN ports, multiple USB ports |
| Power Supply | DC 12V |
Technical Capabilities
Detailed Specifications
CPU Intel® 7th CoreTM i3-7020U，3M Cache, Dual-core, 2.3 GHz, TDP 15W Display 1*VGA: max resolution up to 1920*1200@60Hz 1*HDMI: max resolution up to 1920*1200@60Hz 1*LVDS/eDP: LVDS,Dual Channel 24 bit, max resolution up to 1920*1200@60Hz Memory Support DDR4-1866/2133, 1*SO-DIMM, up to 16 GB Storage 1 * SATA3.0 7P Connector 1 * mSATA Expansion Interface 2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G supported) Ethernet 1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45 Audio Realtek® HDA Codec, with MIC/Line-out and Amplifier 1 * Front Audio Header (Line-Out + MIC) 1 * Line-Out + MIC 3.5mm Jack COM 4 * RS232(Header) USB 2 * USB3.0 (Rear I/O, TYPE-A) 2 * USB2.0 (Rear I/O, TYPE-A) 6 * USB2.0 (Internal, Header) Other Ports 1 * PS/2 Header 1* VGA Header 1 * Micro SIM Card Slot 1 * CPU FAN Header 1 * Front Panel Header 1 * GPIO Header 1 * CMOS Clear Jumper System Windows7/8.1/10, Linux Temperature Storage: -20~75℃ Operating: -10°~60℃ BIOS AMI UEFI BIOS (Support Watchdog Timer) Power Input DC 12V 1 * ATX 4P CPU Power Input Connector Factor MINI-ITX Standard (170mm * 170mm)
NW-A704 Industrial Motherboard | Embedded Computing Solution
The NW-A704 is a high-performance industrial embedded motherboard designed for demanding industrial automation, embedded computing, and IoT applications. Its robust design ensures stable 24/7 operation in demanding environments.
Key Features
- Industrial Grade Design - Built for 24/7 continuous operation
- Fanless Cooling - Passive thermal solution for silent operation
- Rich I/O Interfaces - USB, COM, Gigabit LAN, HDMI, LVDS
- Wide OS Support - Windows 10/11, Linux compatible
Industrial Applications
The NW-A704 is ideal for industrial control systems, automation equipment, digital signage, embedded computing platforms, and IoT gateway applications.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- OEM and ODM customization services
- Complete PCBA production capability
- Strict quality management systems
- Long lifecycle product support
- Global engineering support services
Request A Quote
Contact NEWEI today for your industrial motherboard requirements.
