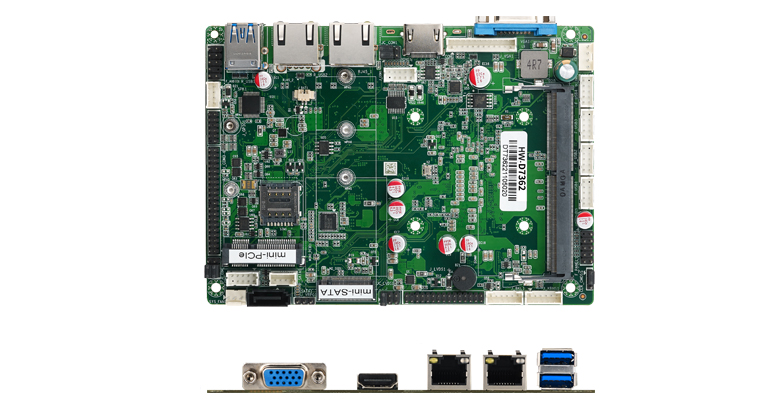

NW-D7362 Embedded Industrial Motherboard | Intel Core i5 Embedded Board
Product Specifications
| Specification | Details |
|---|---|
| CPU | Intel Core i5-7360U, dual-core 4 threads, 2.3GHz, 4M Cache, TDP 15W |
| Display | VGA (1920×1200) + HDMI (4K@24Hz) + dual-channel LVDS/eDP |
| Memory | DDR4 SO-DIMM single slot, up to 16GB |
| Network | Dual Gigabit LAN |
| Expansion | Dual Mini-PCIe (mSATA / WiFi / 4G / Bluetooth) |
| Interfaces | Onboard multi-channel RS232/485 headers |
| Power Supply | DC 12V |
Technical Capabilities
Detailed Specifications
Model HW-D7362 CPU Intel® 7th CoreTM i5-7360U, 4M Cache, Dual-core, 2.3 GHz, TDP 15W Display 1*VGA: max resolution up to 1920*1200@60Hz 1*HDMI: max resolution up to 4096*2160@24Hz 1*LVDS/eDP: LVDS, Dual Channel 24 bit, max resolution up to 1920*1200@60Hz eDP, max resolution up to 1920*1200@60Hz Memory Support DDR4-1866/2133, 1*SO-DIMM, up to 16 GB Storage 1 * SATA3.0 7P Connector/mSATA 1 * M.2 Expansion Interface 1*M.2 support SSD with Wifi/4G/BT optional 1*Mini-PCIe support Wifi, with mSATA//4G/BT optional Ethernet 2*Intel® 1Gbps PCIe Ethernet Controller, RJ45 Audio Realtek® HDA Codec, with MIC/Line-out and Amplifier 1 * Front Audio Header (Line-Out + MIC) COM 4 * RS232+2 * RS232/RS485 USB 2 * USB3.0 (Rear I/O, TYPE-A) 8 * USB2.0 (Internal, Header) Other Ports 1 * PS/2 Header 1 * VGA Header 1 * Micro SIM Card Slot 1 * System FAN Header 1 * Front Panel Header 1 * GPIO Header 1 * CMOS Clear Jumper System Windows7/8.1/10, Linux Temperature Storage: -20~75℃ Operating: -10°~60℃ BIOS AMI UEFI BIOS (Support Watchdog Timer) Power Input DC 12V Factor 146*105mm
NW-D7362 Industrial Motherboard | Embedded Computing Solution
The NW-D7362 is a high-performance industrial embedded motherboard designed for demanding industrial automation, embedded computing, and IoT applications. Its robust design ensures stable 24/7 operation in demanding environments.
Key Features
- Industrial Grade Design - Built for 24/7 continuous operation
- Fanless Cooling - Passive thermal solution for silent operation
- Rich I/O Interfaces - USB, COM, Gigabit LAN, HDMI, LVDS
- Wide OS Support - Windows 10/11, Linux compatible
Industrial Applications
The NW-D7362 is ideal for industrial control systems, automation equipment, digital signage, embedded computing platforms, and IoT gateway applications.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- OEM and ODM customization services
- Complete PCBA production capability
- Strict quality management systems
- Long lifecycle product support
- Global engineering support services
Request A Quote
Contact NEWEI today for your industrial motherboard requirements.
