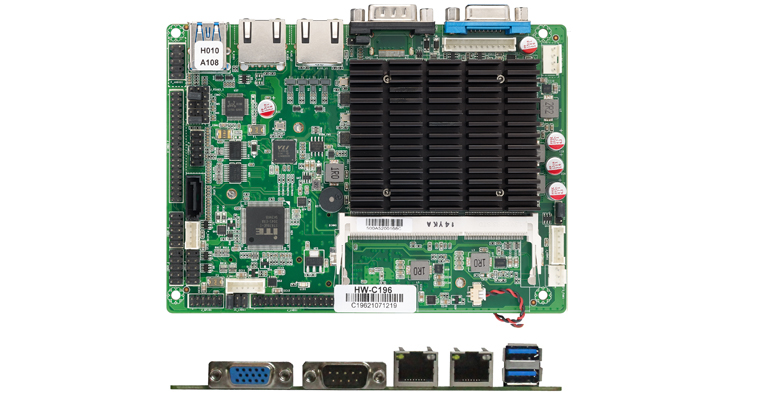

NW-C196 Embedded Industrial Motherboard | Intel Celeron J1900 Fanless Board
Product Specifications
| Specification | Details |
|---|---|
| CPU | Intel Celeron J1900 / J1800 quad-core |
| Dimensions | 146×105mm |
| Serial Ports | 6x COM ports (5x RS232, 1x RS232/485 switchable) |
| USB | 2×USB3.0 rear, 6×USB2.0 onboard headers |
| Network | 2x Realtek Gigabit LAN |
| Display | VGA + LVDS/eDP dual-channel 24bit |
| Expansion | 2×Mini-PCIe (supports mSATA / WiFi / 4G, Micro SIM card slot) |
| Audio | Realtek HDA Audio |
| Peripherals | PS/2, GPIO, Hardware Watchdog, CMOS clear jumper |
| Power Supply | DC 12V |
Technical Capabilities
Detailed Specifications
CPU Intel® Celeron® J1900, Base Frequency 2.00G, Quad-core, TDP 10W Display 1*VGA: max resolution up to 1920*1200@60Hz 1*LVDS/eDP: LVDS,Dual Channel 24 bit, max resolution up to 1920*1200@60Hz Memory Support DDR3L-1333 MHz, 1 * SO-DIMM Slot, Up to 8GB Storage 1 * SATA2.0 7P Connector 1 * mSATA（3.0） Expansion Interface 2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G supported) Ethernet 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ45 Audio Realtek® HDA Codec, with MIC+Line-out (1 * Front Audio Header） COM 5* RS232(1*Connector&4*Header) 1* RS232/RS485(Header) USB 2 * USB3.0 (Rear I/O, TYPE-A) 6 * USB2.0 (Internal, Header) Other Ports 1 * PS/2 Header 1 * VGA Header 1 * Micro SIM Card Slot 1 * SYS FAN Header 1 * Front Panel Header 1 * GPIO Header 1 * CMOS Clear Jumper System Windows7/8.1/10, Linux Temperature Storage: -20~75℃ Operating: -15°~60℃ BIOS AMI UEFI BIOS (Support Watchdog Timer) Power Input DC 12V 1 * ATX 4P CPU Power Input Connector Factor 146mm*105mm
NW-C196 Industrial Motherboard | Embedded Computing Solution
The NW-C196 is a high-performance industrial embedded motherboard designed for demanding industrial automation, embedded computing, and IoT applications. Its robust design ensures stable 24/7 operation in demanding environments.
Key Features
- Industrial Grade Design - Built for 24/7 continuous operation
- Fanless Cooling - Passive thermal solution for silent operation
- Rich I/O Interfaces - USB, COM, Gigabit LAN, HDMI, LVDS
- Wide OS Support - Windows 10/11, Linux compatible
Industrial Applications
The NW-C196 is ideal for industrial control systems, automation equipment, digital signage, embedded computing platforms, and IoT gateway applications.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- OEM and ODM customization services
- Complete PCBA production capability
- Strict quality management systems
- Long lifecycle product support
- Global engineering support services
Request A Quote
Contact NEWEI today for your industrial motherboard requirements.
