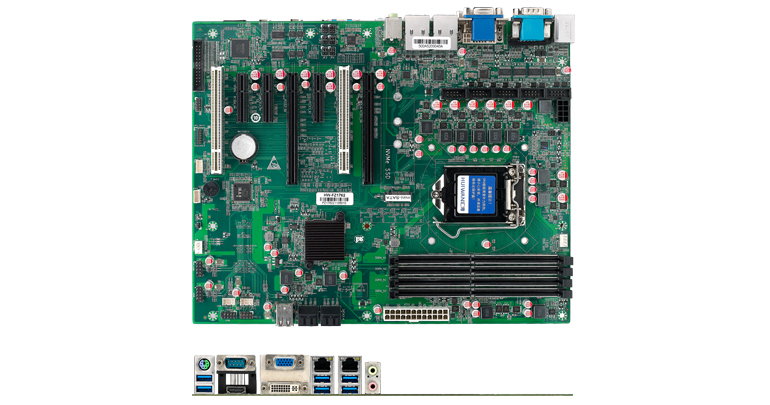

NW-FZ1762 ATX Industrial Motherboard | Intel 9th Gen Core Embedded Platform
Product Specifications
| Specification | Details |
|---|---|
| CPU Socket | LGA1151, supports Intel 6th/7th/8th/9th Gen Core / Pentium / Celeron, up to 6-core 65W |
| Chipset | Intel Z170, supports TPM 2.0 |
| Form Factor | Standard ATX 305×244mm industrial motherboard |
| Display | VGA + HDMI + DVI-D triple display output |
| Memory | 4×DDR4 U-DIMM, up to 64GB |
| Network | Intel I211-AT + I219V/LM dual Gigabit NICs |
| Serial Ports | 6x COM ports (2x RS232/422/485 programmable, 4x RS232) |
| USB | 6×USB3.0 + 8×USB2.0 |
| Storage | 4×SATA3.0 + M.2 slot |
| Expansion | 2×PCI-E X16 (X8 lane speed) |
| Power Supply | Standard ATX power supply (24P + 8P CPU power) |
Technical Capabilities
Detailed Specifications
Model HW-FZ1762 CPU Support Intel® 6/7/8/9th Generation Core /Pentium /Celeron Desktop CPU, LGA1151 Support MAX CPU TDP: Hexa-Core 65W Chipset Intel® Z170, TDP 6W Display 1 * VGA (DB15/F): Support max resolution up to 1920x1200@60Hz 1 * HDMI (TYPE-A): Support max resolution up to 3840x2160@30Hz 1 * DVI-I: Support max resolution up to 1920x1200@60Hz Memory Support DDR4-2133/2400/2600, 4*U-DIMM，up to 64GB Storage 4 * SATA3.0 7P Connector 1 * M.2 Slot (SSD) Ethernet 2*Intel® 1Gbps PCIe Ethernet Controller, RJ45 Audio Realtek ALC662 5.1 Channel HDA Codec, 1 * Line-Out + MIC 3.5mm Jack Expansion Slots 2 * PCI-E x16 Slot(support x8) 2 * PCIe x4 Slot(support x4) 1 * PCIe x4 Slot(support x1) 2 * PCI 1 * Mini-PCIe (support Wifi/3G/4G) 1 * M.2 Slot (support SSD) COM 2 * RS232/RS422/RS485 (COM1 Connector& COM2 Header) 4 * RS232 (COM3/4/5/6, Header) USB 6 * USB3.0 (Rear I/O, TYPE-A) 8 * USB2.0 (Internal, Header) Other Ports 1 * LPT 1 * PS/2 1 * Micro SIM Card Slot 1 * CPU FAN Header 1 * System FAN Header 1 * SMBUS Header 3 * Front Panel Header 1 * GPIO Header 1 * CMOS Clear Jumper System Windows7/8.1/10, Linux Temperature Storage: -20~75℃ Operating: 0~60℃ BIOS AMI UEFI BIOS (Support Watchdog Timer) Power Supply ATX Standard (20P + 8P) 1 * ATX 8P Power Input Connector 1 * ATX 20P Power Input Connector Factor 305mm X 244mm
NW-FZ1762 Industrial Motherboard | Embedded Computing Solution
The NW-FZ1762 is a high-performance industrial embedded motherboard designed for demanding industrial automation, embedded computing, and IoT applications. Its robust design ensures stable 24/7 operation in demanding environments.
Key Features
- Industrial Grade Design - Built for 24/7 continuous operation
- Fanless Cooling - Passive thermal solution for silent operation
- Rich I/O Interfaces - USB, COM, Gigabit LAN, HDMI, LVDS
- Wide OS Support - Windows 10/11, Linux compatible
Industrial Applications
The NW-FZ1762 is ideal for industrial control systems, automation equipment, digital signage, embedded computing platforms, and IoT gateway applications.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- OEM and ODM customization services
- Complete PCBA production capability
- Strict quality management systems
- Long lifecycle product support
- Global engineering support services
Request A Quote
Contact NEWEI today for your industrial motherboard requirements.
Download Details
