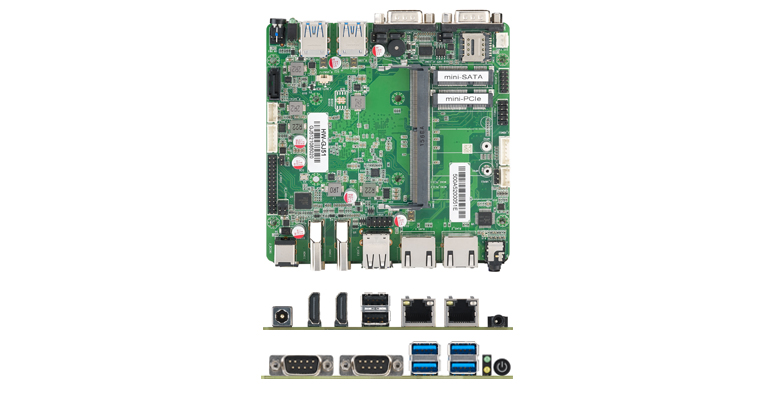

NW-GJ51 Nano ITX Industrial Motherboard | Intel Jasper Lake Embedded Board
Product Specifications
| Specification | Details |
|---|---|
| CPU | Intel Jasper Lake N-series quad-core processor, TDP 10W |
| Dimensions | 120×120mm Nano-ITX |
| Display | Triple display output |
| Network | 2x Realtek Gigabit RJ45 |
| Serial Ports | 2x rear RS232 |
| USB | 4×USB3.0 rear, 4×USB2.0 (2 rear + 2 onboard headers) |
| Memory | DDR4-3200 SO-DIMM single slot, up to 16GB |
| Storage | SATA3.0 + mSATA3.0, 2×Mini-PCIe (SSD / 4G / WiFi, with Micro SIM slot) |
| Power Supply | DC 12V |
| OS | Win8.1/10, Linux |
Technical Capabilities
Detailed Specifications
CPU Intel® Celeron® N5105 Base Frequency 2.0G, Quad-core, TDP 10W Display Support triple display simultaneously： 2*HDMI: resolution up to 4096x2160@24Hz 1*LVDS/eDP: LVDS, resolution up to 1920x1200@60Hz eDP, resolution up to 4096x2160@60Hz Memory DDR4-3200,1*SO-DIMM, up to 16 GB Storage 1 * SATA3.0 7P Connector 1 * mSATA（3.0） Expansion Interface 2*Mini-PCIe (1*Wifi supported，1*mSATA with 3G/4G selectable) Ethernet 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ45 Audio Realtek® HDA Codec, with MIC/Line-out and Amplifier 1 * Line-Out / MIC 3.5mm Jack 1 * Amplifier Header COM 2 * RS232 Connector USB 4 * USB3.0 (Rear I/O, TYPE-A) 2 * USB2.0 (Rear I/O, TYPE-A) 2 * USB2.0 (Internal, Header) Other Ports 1 * Micro SIM Card Slot 1 * SYS FAN Header 1 * Front Panel Header 1 * GPIO Header 1 * CMOS Clear Jumper 1 * ME Header 1 * VRM Power Header System Windows 8.1/10, Linux Temperature Storage: -20~75℃ Operating: -15°~60℃ BIOS AMI UEFI BIOS (Support Watchdog Timer) Power Input DC 12V 1 * DC Power Input Connector Factor 120mm*120mm
NW-GJ51 Industrial Motherboard | Embedded Computing Solution
The NW-GJ51 is a high-performance industrial embedded motherboard designed for demanding industrial automation, embedded computing, and IoT applications. Its robust design ensures stable 24/7 operation in demanding environments.
Key Features
- Industrial Grade Design - Built for 24/7 continuous operation
- Fanless Cooling - Passive thermal solution for silent operation
- Rich I/O Interfaces - USB, COM, Gigabit LAN, HDMI, LVDS
- Wide OS Support - Windows 10/11, Linux compatible
Industrial Applications
The NW-GJ51 is ideal for industrial control systems, automation equipment, digital signage, embedded computing platforms, and IoT gateway applications.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- OEM and ODM customization services
- Complete PCBA production capability
- Strict quality management systems
- Long lifecycle product support
- Global engineering support services
Request A Quote
Contact NEWEI today for your industrial motherboard requirements.
Download Details
