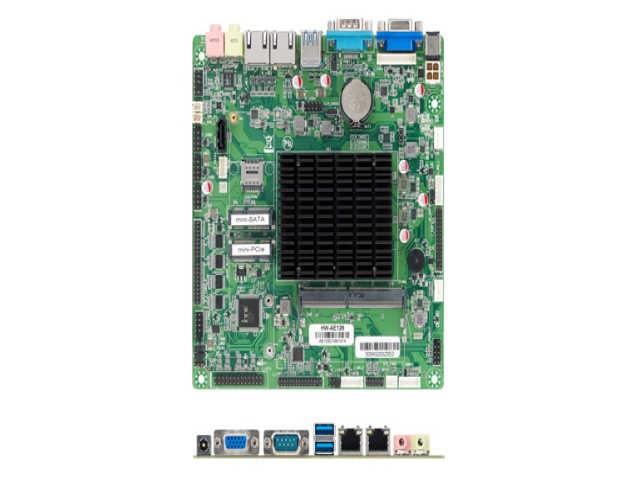

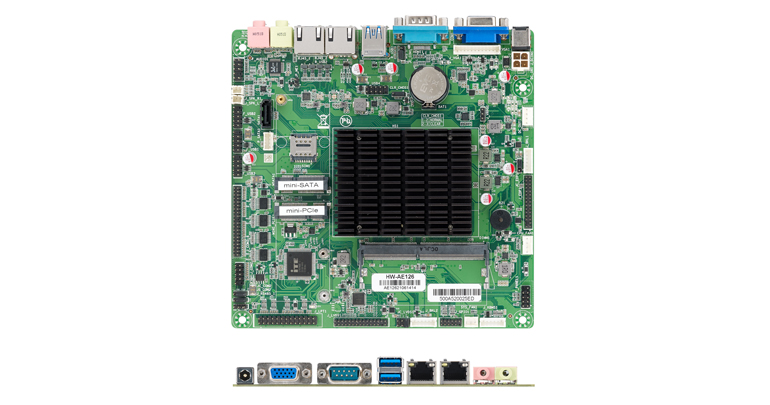

NW-AE1262 Intel Embedded Motherboard | Fanless Industrial Computer Board
Product Specifications
| Specification | Details |
|---|---|
| CPU | Intel Celeron J6412, 4 cores, 2.0GHz, TDP 10W |
| Display | Quad synchronous display output |
| Memory | DDR4 SO-DIMM single slot, up to 16GB |
| Storage | mini-SATA SSD slot + mini-PCIe wireless module slot |
| Network | Dual Gigabit Ethernet ports |
| Interfaces | Multi-channel RS232 COM, GPIO, front audio, multiple USB3.0/USB2.0 headers/ports |
| Power Supply | DC 12V |
| Form Factor | 3.5-inch embedded motherboard, fanless passive cooling |
Technical Capabilities
Detailed Specifications
Model HW-AE1262 HW-AE126 CPU Intel® Celeron® J6412 Base Frequency 2.0G, Quad-core, TDP 10W Display Support quad display simultaneously： 1*HDMI/eDP: HDMI,resolution up to 4096x2160@24Hz eDP, resolution up to 4096x2160@60Hz 1*LVDS/eDP: LVDS, resolution up to 1920x1200@60Hz eDP, resolution up to 4096x2160@60Hz 1*VGA: max resolution up to 1920*1200@60Hz Memory DDR4-3200,1*SO-DIMM, up to 16 GB Storage 1 * SATA2.0 7P Connector 1 * mSATA（3.0） Expansion Interface 2*Mini-PCIe (1*mSATA, 1*Wifi supported with 3G/4G selectable) Ethernet 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ45 1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45 Audio Realtek® HDA Codec, with MIC/Line-out and Amplifier 1 * Front Audio Header (Line-Out + MIC) 1 * Line-Out + MIC 3.5mm Jack COM 5 * RS232+1*RS232/RS485 (1*Connector&5*Header) USB 2 * USB3.0 (Rear I/O, TYPE-A) 8 * USB2.0 (Internal, Header) 2 * USB3.0 (Rear I/O, TYPE-A) 2 * USB2.0 (Rear I/O, TYPE-A) 6 * USB2.0 (Internal, Header) Other Ports 1 * LPT Header 1 * VGA Header 1 * Micro SIM Card Slot 1 * CPU FAN Header 1 * Front Panel Header 1 * GPIO Header 1 * CMOS Clear Jumper 1 * ME Header System Windows10, Linux Temperature Storage: -20~75℃ Operating: -15°~60℃ BIOS AMI UEFI BIOS (Support Watchdog Timer) Power Input DC 12V 1 * ATX 4P CPU Power Input Connector Factor MINI-ITX Standard (170mm * 170mm)
NW-AE1262 Industrial Motherboard | Embedded Computing Solution
The NW-AE1262 is a high-performance industrial embedded motherboard designed for demanding industrial automation, embedded computing, and IoT applications. Its robust design ensures stable 24/7 operation in demanding environments.
Key Features
- Industrial Grade Design - Built for 24/7 continuous operation
- Fanless Cooling - Passive thermal solution for silent operation
- Rich I/O Interfaces - USB, COM, Gigabit LAN, HDMI, LVDS
- Wide OS Support - Windows 10/11, Linux compatible
Industrial Applications
The NW-AE1262 is ideal for industrial control systems, automation equipment, digital signage, embedded computing platforms, and IoT gateway applications.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- OEM and ODM customization services
- Complete PCBA production capability
- Strict quality management systems
- Long lifecycle product support
- Global engineering support services
Request A Quote
Contact NEWEI today for your industrial motherboard requirements.
Download Details
