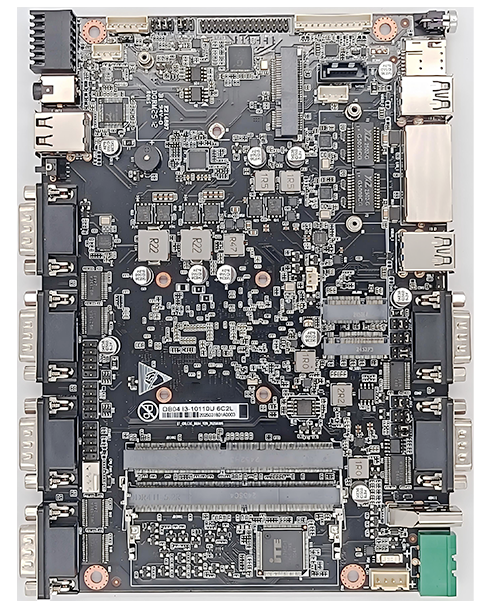

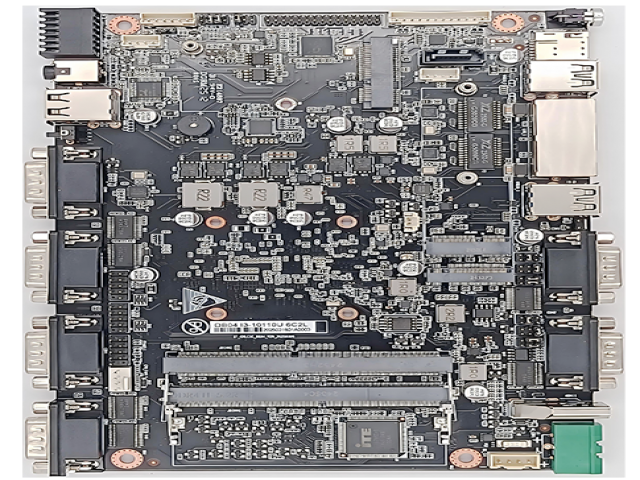

Comet Lake DB04 3.5 Inch Industrial Motherboard | Intel Comet Lake Embedded Board
Product Specifications
| Specification | Details |
|---|---|
| CPU | Integrated Intel® COMET Lake Series CPU |
| Motherboard Size | 196mm ×138mm |
| Memory | SODIMM×2, DDR4 2666, Up to 64GB |
| Storage | SATA SSD, SATA, NVMe SSD |
| Display | Integrated Intel® UHD Graphics, HDMI, LVDS, Max 3840×2160 |
| Power Interface | 12V Phoenix terminal power connector, 4PIN power connector |
| I/O Interface | USB3.0×4, USB2.0×4, HDMI×2, VGA×1, RJ45(2.5G)×4, COM×6, 2-in-1 Audio×1, Type-C×1 |
| OS | Windows 10/11/Linux/Android |
Technical Capabilities
Comet Lake DB04 Industrial Motherboard | Embedded Computing Solution
The Comet Lake DB04 is a high-performance industrial embedded motherboard designed for demanding industrial automation, embedded computing, and IoT applications. Its robust design ensures stable 24/7 operation in demanding environments.
Key Features
- Industrial Grade Design - Built for 24/7 continuous operation
- Fanless Cooling - Passive thermal solution for silent operation
- Rich I/O Interfaces - USB, COM, Gigabit LAN, HDMI, LVDS
- Wide OS Support - Windows 10/11, Linux compatible
Industrial Applications
The Comet Lake DB04 is ideal for industrial control systems, automation equipment, digital signage, embedded computing platforms, and IoT gateway applications.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- OEM and ODM customization services
- Complete PCBA production capability
- Strict quality management systems
- Long lifecycle product support
- Global engineering support services
Request A Quote
Contact NEWEI today for your industrial motherboard requirements.
Download Details
