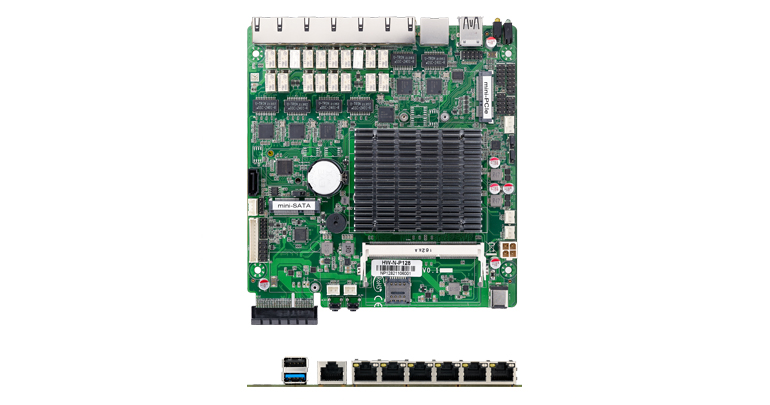

NW-N-P128 Network Security Motherboard | 6 LAN Industrial Firewall Board
Product Specifications
| Specification | Details |
|---|---|
| CPU | Intel Celeron J1900 4 cores 4 threads, 2.0GHz, TDP 10W (Bay Trail) |
| Positioning | Soft router / Network security motherboard |
| Network | 6x Intel I211-AT Gigabit LAN ports with 2 groups of hardware Bypass |
| Display | Single VGA output, 1920×1200@60Hz |
| Memory | DDR3L-1333 SO-DIMM single slot, up to 8GB |
| Storage | SATA2.0 + mSATA3.0 |
| Expansion | 2×Mini-PCIe (supports SSD / WiFi / 4G, with SIM slot) |
| Dimensions | 168×160mm |
| Power Supply | DC 12V |
Technical Capabilities
Detailed Specifications
Model HW-N-P128 CPU Intel® Celeron® J1900, Base Frequency 2.00G, Quad-core, TDP 10W Display 1*VGA: max resolution up to 1920*1200@60Hz Memory Support DDR3L-1333 MHz, 1 * SO-DIMM Slot, Up to 8GB Storage 1 * SATA2.0 7P Connector 1 * mSATA（3.0） Expansion Interface 1*Mini-PCIe (support mSATA) 1*Mini-PCIe[1][2](support wifi/4G/BT) 1*PCIE 4X[1] Ethernet 6*Intel® 1Gbps PCIe Ethernet Controller(i211-AT), RJ45 2*Gen3 Bypass COM 2 * RS232(1* RJ45 Connector & 1 * Header) USB 1 * USB3.0 (Rear I/O, TYPE-A) 3 * USB2.0 (1*Connector&2*Header)[2] Other Ports 1 * PS/2 Header 2 * VGA Header(share the same signal) 1 * Micro SIM Card Slot 1 * CPU FAN Header 1 * System FAN Header 2 * GPIO Header 1 * CMOS Clear Jumper 1 * LED Header 1 * System Reset Header 1 * Power Button Header System Windows7/8.1/10, Linux Temperature Storage: -20~75℃ Operating: -15°~60℃ BIOS AMI UEFI BIOS (Support Watchdog Timer) Power Input DC 12V 1 * ATX 4P CPU Power Input Connector 1 * DC JACK Connector Factor 168*160mm Note： : The PCIe 4X connector will be invaluable if Mini-PCIE1 support WiFi. : One pair signal of F_USB1 will be invaluable if Mini-PCIE1 support 4G/3G.
NW-N-P128 Industrial Motherboard | Embedded Computing Solution
The NW-N-P128 is a high-performance industrial embedded motherboard designed for demanding industrial automation, embedded computing, and IoT applications. Its robust design ensures stable 24/7 operation in demanding environments.
Key Features
- Industrial Grade Design - Built for 24/7 continuous operation
- Fanless Cooling - Passive thermal solution for silent operation
- Rich I/O Interfaces - USB, COM, Gigabit LAN, HDMI, LVDS
- Wide OS Support - Windows 10/11, Linux compatible
Industrial Applications
The NW-N-P128 is ideal for industrial control systems, automation equipment, digital signage, embedded computing platforms, and IoT gateway applications.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- OEM and ODM customization services
- Complete PCBA production capability
- Strict quality management systems
- Long lifecycle product support
- Global engineering support services
Request A Quote
Contact NEWEI today for your industrial motherboard requirements.
Download Details
