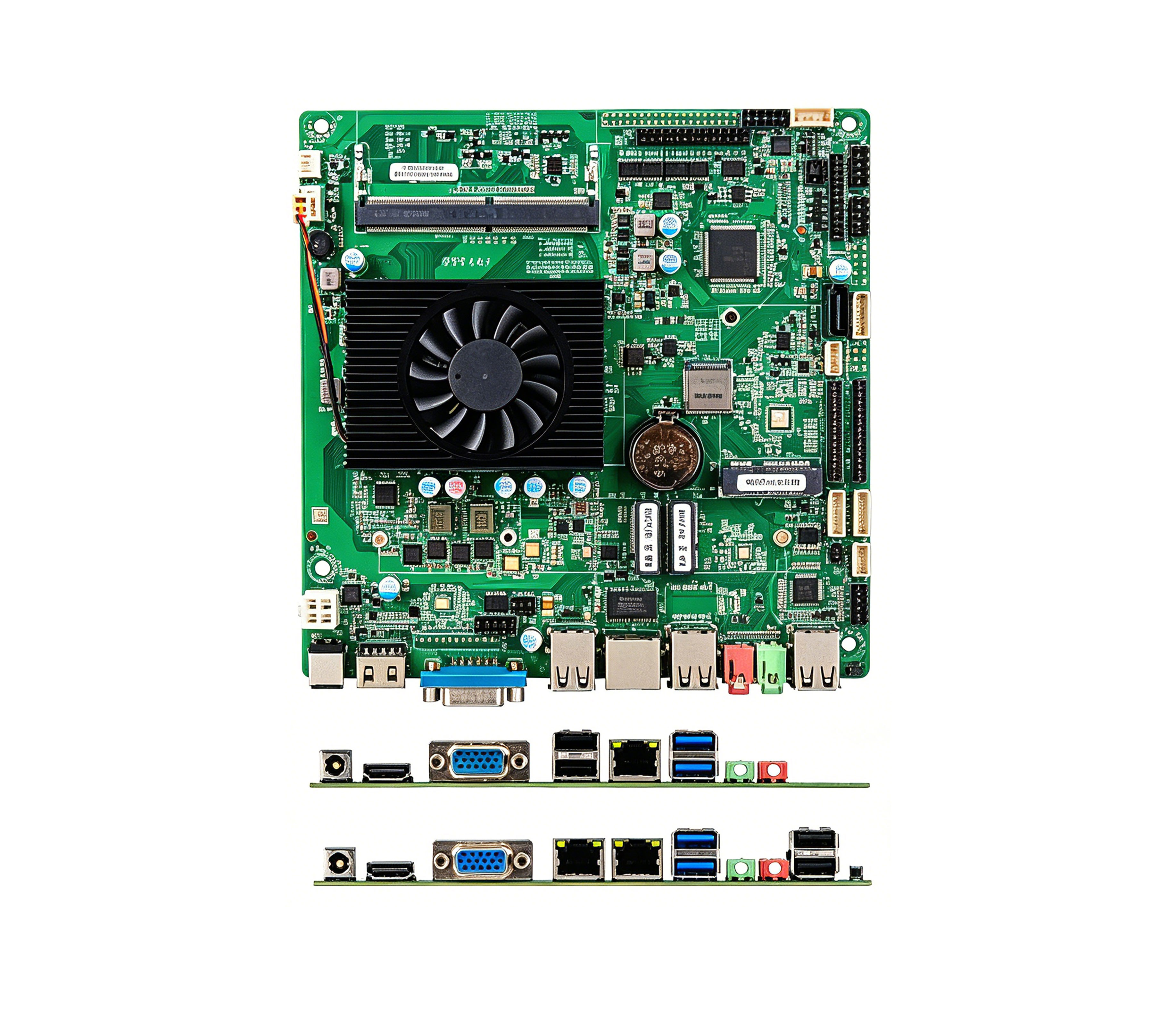

FP78A0 Industrial Automation Motherboard | Multi COM Embedded Controller Board
Product Specifications
- Processor: Intel® Sky Lake-U / Kaby Lake-U / Kaby Lake-R Core i3/i5/i7 series processors
- Memory: Supports DDR4L-2400MHz, 1× SO‑DIMM slot, 1.2V, max 16GB
- LAN: 1/2 × Realtek PCI‑E bus RTL8106E / RTL8111H Gigabit Ethernet controllers
- Display:
- 2× eDP, or 1× eDP + 1× LVDS
- 1× HDMI
- 1× VGA
- WiFi: 1× Mini‑PCIE (supports WiFi & 4G), 1× M.2 (supports WiFi)
- Storage: 1× SATA, 1× M.2 (Key‑M, 2280, PCIe×2 NVMe / SATA SSD)
- USB: 2× USB3.0 ports, 4× USB2.0 ports, 2× USB2.0 pin headers (JUSB shares layout with board‑edge USB3), 1× TCH‑USB
- COM Ports: 6× onboard COM; COM1/COM2 can be configured as RS485/232 (optional)
- OS Support: Windows 7 / 8 / 10, Linux
- Dimensions: 170mm × 170mm
Technical Capabilities
FP78A0 Industrial Automation Motherboard | Multi COM Embedded Controller Board
The FP78A0 Industrial Automation Motherboard is a compact embedded computing platform designed for factory automation, industrial control systems, machine communication, HMI terminals, equipment monitoring and intelligent manufacturing applications. Supporting Intel® Skylake-U, Kaby Lake-U and Kaby Lake-R processors, the motherboard delivers reliable industrial computing performance while maintaining long-term stability and low power consumption.
Industrial automation environments require dependable computing platforms capable of connecting multiple devices, sensors, controllers and communication networks. The FP78A0 provides extensive serial communication capabilities, flexible display support and industrial-grade reliability, making it an ideal foundation for OEM and ODM automation projects.
With support for multiple COM ports, Gigabit Ethernet networking, SATA storage, Mini PCIe expansion and industrial operating systems, the motherboard enables manufacturers to build intelligent automation equipment for a wide range of industries.
Key Features
- Supports Intel Skylake-U, Kaby Lake-U and Kaby Lake-R processors
- Industrial embedded motherboard design
- Up to 16GB DDR4 memory support
- Up to 6 industrial COM ports
- Gigabit Ethernet connectivity
- Mini PCIe expansion for WiFi and 4G modules
- SATA and M.2 storage support
- HDMI, VGA and eDP display outputs
- Industrial communication interfaces
- Compact Mini-ITX architecture
- Windows and Linux compatibility
- Designed for 24/7 industrial operation
Designed for Industrial Automation
Modern manufacturing facilities depend on automation systems to improve productivity, reduce operational costs and increase production consistency. The FP78A0 provides a reliable hardware platform for industrial automation equipment that must operate continuously in demanding environments.
The motherboard supports machine control, production monitoring, process management and industrial communication functions required by modern smart factories and Industry 4.0 deployments.
Its compact form factor allows easy integration into automation cabinets, industrial workstations, operator terminals and intelligent equipment.
Multi-COM Communication Architecture
One of the most important advantages of the FP78A0 is its extensive serial communication capability. Industrial equipment often relies on RS232, RS485 and legacy communication protocols to connect machinery, sensors and controllers.
The motherboard provides multiple COM interfaces that simplify communication with PLCs, barcode scanners, weighing systems, industrial sensors, printers, HMI terminals and automation equipment.
- PLC communication
- Industrial sensor integration
- Barcode scanner connectivity
- Industrial printer systems
- Weighing equipment control
- Machine communication networks
- Automation device integration
Factory Control System Applications
The FP78A0 is well suited for deployment in factory control systems that monitor and manage production operations. By combining reliable processing performance with extensive communication interfaces, the motherboard supports real-time control and operational visibility.
Manufacturers can use the platform to build operator workstations, process control terminals, machine interfaces and intelligent production management systems.
Industrial HMI Integration
Human Machine Interface systems play a critical role in industrial environments. The FP78A0 supports multiple display interfaces including HDMI, VGA and eDP, allowing integration into touch panel systems and industrial display terminals.
These interfaces provide flexibility for developing operator terminals, machine dashboards and equipment monitoring stations.
The platform supports responsive user interfaces that improve productivity and simplify machine operation.
Smart Manufacturing Solutions
Industry 4.0 initiatives require connected devices capable of collecting operational data and communicating with enterprise systems. The FP78A0 serves as an effective embedded platform for smart manufacturing applications.
The motherboard can support production monitoring, equipment diagnostics, predictive maintenance systems and manufacturing data collection platforms.
Its reliable architecture enables long-term deployment in modern intelligent factories.
Storage and Expansion Flexibility
The FP78A0 supports both SATA storage and M.2 SSD solutions, allowing system designers to optimize performance according to project requirements.
Mini PCIe expansion enables integration of WiFi, Bluetooth and 4G communication modules, providing additional flexibility for remote connectivity and wireless communication applications.
This expansion capability helps manufacturers create scalable and future-ready industrial products.
OEM & ODM Manufacturing Services
NEWEI provides complete OEM and ODM services for industrial motherboards, automation controllers, embedded computing systems and custom PCBA projects.
Our engineering team supports BIOS customization, hardware optimization, interface modifications, enclosure integration and volume manufacturing services.
From prototype development to mass production, NEWEI helps customers accelerate product launches while maintaining strict quality standards.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- Industrial automation expertise
- Complete PCBA production capability
- OEM and ODM customization services
- Strict quality control systems
- Long lifecycle support
- Flexible manufacturing volumes
- Global engineering support
Frequently Asked Questions
What applications is the FP78A0 designed for?
Factory automation, industrial control systems, machine communication, HMI terminals and intelligent manufacturing equipment.
Does the motherboard support multiple COM ports?
Yes. The platform supports extensive serial communication interfaces for industrial equipment integration.
Can WiFi or 4G modules be installed?
Yes. Mini PCIe expansion supports wireless communication modules.
Which operating systems are supported?
Windows and Linux operating systems are supported.
Can NEWEI provide OEM customization?
Yes. Complete OEM and ODM services are available including BIOS customization, hardware modifications and PCBA manufacturing.
Request A Quote
Looking for a reliable industrial automation motherboard manufacturer? Contact NEWEI today to discuss your factory automation, industrial controller, HMI terminal or smart manufacturing project requirements and receive a customized OEM or ODM solution.
