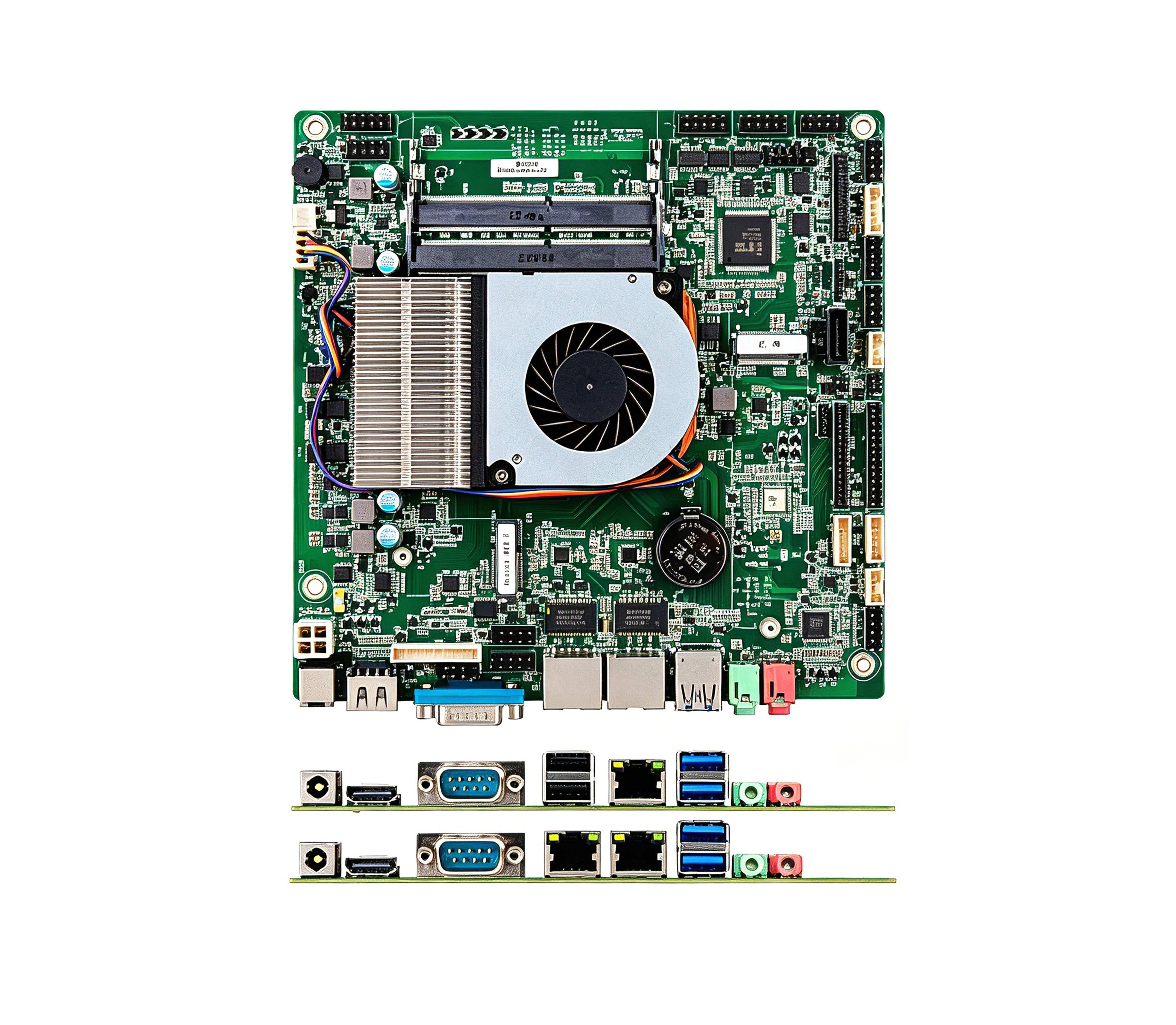

FP82B0 Industrial Display Motherboard | Intel Whiskey Lake Embedded Board
Product Specifications
- Processor: Intel® Whiskey Lake Pentium / Core i3 / i5 / i7 series processors
- Memory: Supports DDR4L-2400MHz, 2*SO-DIMM slots, 1.2V, max 32GB
- LAN: 2*Realtek PCI-E bus RTL8106E / RTL8111H Gigabit Ethernet controllers (optional single-LAN configuration)
- Display: 1*eDP interface (eDP1 shares layout with LVDS), 1*VGA, 1*HDMI – supports triple display with clone or extended mode simultaneously in configurations including eDP+eDP / VGA+HDMI, LVDS+eDP / VGA+HDMI, eDP+LVDS+HDMI
- WiFi: 1*M.2 (Key-E, 2230, WiFi + BT)
- Storage: 1*SATA 3.0, 1*M.2 (Key-M, 2280, PCIe*4 / SATA SSD)
- USB: 2*USB3.0 (rear I/O), 2*USB2.0 (rear I/O, for single-LAN configuration), 6*USB2.0 pin headers (4*USB2.0 pin headers when single-LAN), 1*USB TCH pin header
- COM Ports: 2*onboard COM; COM1/COM2 can be switched between RS485 and RS232, with optional 5V/12V power output
- OS Support: Windows 10, Linux
- Dimensions: 170mm * 170mm
Technical Capabilities
FP82B0 Industrial Display Motherboard | Intel Whiskey Lake Embedded Board
The FP82B0 Industrial Display Motherboard is a high-reliability embedded computing platform designed for industrial displays, human machine interface (HMI) systems, digital signage equipment, self-service kiosks, medical terminals, transportation displays, and embedded control applications. Built around Intel® Whiskey Lake processors, the motherboard delivers excellent performance, long-term stability, and flexible display connectivity for industrial environments.
As industrial display systems become increasingly intelligent and interactive, manufacturers require hardware platforms capable of supporting high-resolution graphics, multiple display outputs, responsive user interfaces, and reliable continuous operation. The FP82B0 provides an ideal foundation for these applications while maintaining low power consumption and industrial-grade reliability.
With support for DDR4 memory, NVMe SSD storage, multiple display interfaces, Gigabit Ethernet networking, and industrial communication capabilities, the FP82B0 enables OEM and ODM manufacturers to accelerate product development while reducing system complexity.
Key Features
- Intel® Whiskey Lake processor platform
- Industrial-grade embedded motherboard design
- Supports DDR4 memory
- M.2 NVMe SSD support
- Multiple display output interfaces
- High-resolution display support
- Gigabit Ethernet connectivity
- USB 3.0 high-speed interfaces
- Industrial communication support
- Windows and Linux compatibility
- Compact embedded architecture
- Designed for 24/7 operation
Optimized for Industrial Display Systems
Industrial display applications require a combination of graphics performance, system stability, and long operational life. The FP82B0 is specifically developed to support display-driven applications where reliability and responsiveness are essential.
Whether deployed in manufacturing environments, healthcare facilities, transportation terminals, retail systems, or public information displays, the motherboard provides dependable operation and excellent visual performance.
Its industrial-grade design allows manufacturers to build products that remain stable under continuous operation while supporting modern graphical user interfaces and multimedia content.
Human Machine Interface (HMI) Applications
Modern HMI systems demand responsive touch interfaces, clear graphical displays, and reliable connectivity with industrial equipment. The FP82B0 provides the processing performance necessary for operator terminals, industrial workstations, and control panels.
By supporting advanced user interfaces and multiple display configurations, the motherboard enables manufacturers to create intuitive systems that improve operator efficiency and production visibility.
The platform is suitable for factory automation terminals, process control systems, manufacturing dashboards, and equipment monitoring stations.
Digital Signage Solutions
Digital signage continues to play an important role in retail, transportation, education, hospitality, and public information systems. The FP82B0 supports high-resolution content playback and reliable multimedia performance for commercial display deployments.
Its processing capabilities allow smooth presentation of advertising content, informational graphics, interactive displays, and multimedia applications while maintaining system stability during continuous operation.
The motherboard's flexible display architecture simplifies integration into digital signage products of various sizes and configurations.
Multi-Display Capability
Many industrial applications require more than a single display output. The FP82B0 supports multiple display interfaces that allow system designers to create dual-display and extended-screen configurations.
- Industrial operator workstations
- Dual-screen kiosks
- Retail display terminals
- Transportation information systems
- Manufacturing dashboards
- Medical display systems
- Interactive display platforms
Multi-display support improves user interaction while increasing operational efficiency across various industries.
Embedded Computing Performance
The Intel Whiskey Lake platform provides a balance between processing capability and energy efficiency. This enables the FP82B0 to support modern software applications without requiring excessive power consumption or cooling resources.
The processor architecture is well suited for graphical interfaces, industrial software platforms, digital signage applications, and embedded control systems that require reliable performance over extended periods.
For OEM manufacturers, this balance contributes to lower operating costs and simplified system design.
Storage and Memory Flexibility
The motherboard supports DDR4 memory configurations that provide sufficient resources for multitasking, graphical applications, and industrial software environments.
Integrated M.2 NVMe SSD support enables fast system startup, improved application responsiveness, and efficient data access. High-speed storage also contributes to overall system reliability and user experience.
Additional storage options allow manufacturers to customize solutions according to project requirements.
Industrial Connectivity
Industrial applications often require communication with external devices, controllers, sensors, and network infrastructure. The FP82B0 includes a comprehensive set of interfaces to support these requirements.
- Gigabit Ethernet
- USB 3.0
- USB 2.0
- Serial communication interfaces
- M.2 expansion support
- Industrial peripheral connectivity
These interfaces enable seamless integration into industrial automation, intelligent transportation, healthcare equipment, and embedded computing environments.
Medical and Healthcare Applications
Healthcare systems increasingly rely on embedded computing platforms to support patient information terminals, diagnostic equipment, laboratory systems, and medical display devices.
The FP82B0 provides the stability and display performance required for these applications while supporting long-term deployment requirements commonly found in healthcare environments.
Its compact architecture and industrial reliability make it suitable for a wide range of medical equipment integration projects.
Transportation Information Systems
Transportation infrastructure often requires reliable display platforms for passenger information, ticketing systems, navigation displays, and operational monitoring terminals.
The FP82B0 provides stable operation and flexible connectivity for these applications while supporting continuous operation in demanding environments.
OEM & ODM Manufacturing Services
NEWEI provides complete OEM and ODM services for industrial motherboards, embedded computing platforms, HMI systems, and custom PCBA projects.
Our engineering team supports BIOS customization, interface modification, hardware optimization, enclosure integration, software deployment, and large-scale manufacturing services.
From prototype development through mass production, NEWEI helps customers accelerate product launches while maintaining strict quality standards and reliable supply chain support.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- Extensive OEM and ODM experience
- Complete PCBA manufacturing capabilities
- Industrial display platform expertise
- Strict quality assurance systems
- Long-term lifecycle support
- Flexible manufacturing volumes
- Global technical support services
Frequently Asked Questions
What applications is the FP82B0 designed for?
The motherboard is designed for industrial displays, HMI systems, digital signage, medical terminals, kiosks, and embedded computing applications.
Does the motherboard support multiple displays?
Yes. The FP82B0 supports multiple display interfaces for dual-display and extended-screen configurations.
Does it support NVMe SSD storage?
Yes. The integrated M.2 interface supports high-speed NVMe SSD storage devices.
Which operating systems are supported?
Windows and Linux operating systems are supported.
Can NEWEI provide OEM customization?
Yes. OEM and ODM services are available including BIOS customization, hardware modification, PCBA manufacturing, and complete product integration.
Request A Quote
Looking for a reliable industrial display motherboard manufacturer? Contact NEWEI today to discuss your HMI system, digital signage, kiosk, medical device, or embedded computing project requirements and receive a customized OEM or ODM solution.
