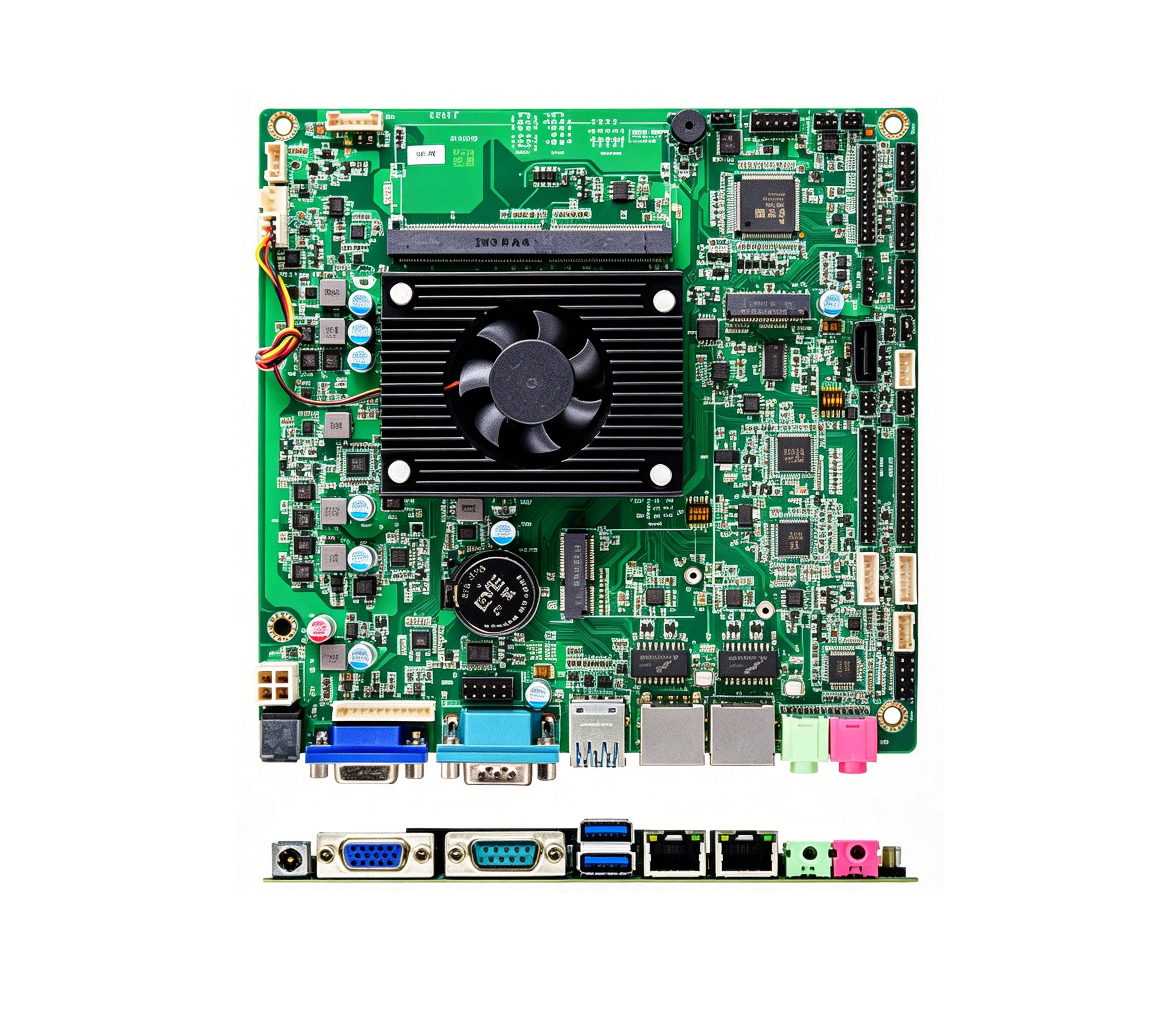

FTA-D15P2E Embedded Motherboard | Intel Jasper Lake Industrial Mini ITX Board
Product Specifications
- Model: FTA-D15P2 E / FTA-H15P2 E / FTA-G14P2 E
- Processor: Intel® Jasper Lake N5105 / N5095, quad-core, base frequency 2.0GHz, TDP 10W/15W, 10nm
- Memory: Supports DDR4L-2933MHz, 1*SO-DIMM slot, 1.2V, max 32GB
- LAN: 1*Realtek PCI-E bus RTL8106E / RTL8111H Gigabit Ethernet controller (optional dual-Gigabit configuration)
- Display: Supports triple display with clone or extended mode in the following configurations:
- Option 1: 1*LVDS + 1*VGA + 1*eDP
- Option 2: 2*LVDS + 1*VGA
- Option 3: 2*eDP + 1*VGA
- WiFi: 1*M.2 (Key-E, 2230, WiFi + BT)
- Storage: 1*SATA 6Gb/s standard socket, 1*M.2 (2280, NVMe protocol)
- USB: 2*USB3.0 (rear I/O), 2*USB2.0 (rear I/O), 2*USB2.0 pin headers, 1*single-row USB pin header
- COM Ports: 2*onboard COM; COM2 can be configured as RS485/232 (optional)
- OS Support: Windows 10, Linux
- Dimensions: 170mm * 170mm
Technical Capabilities
The FTA-D15P2E Embedded Motherboard is a compact industrial computing platform based on Intel® Jasper Lake processors, including Intel® N5105 and N5095 quad-core CPUs. Designed for industrial automation, smart terminals, digital signage, medical equipment, self-service kiosks, transportation systems, and embedded control applications, the motherboard combines low power consumption, stable operation, and flexible expansion capabilities in a Mini ITX form factor.
Built using Intel's advanced 10nm process technology, the FTA-D15P2E delivers excellent performance-per-watt while maintaining industrial-grade reliability. The motherboard supports DDR4 memory, NVMe SSD storage, multiple display interfaces, industrial communication ports, and optional dual Gigabit LAN configurations, making it an ideal platform for OEM and ODM embedded computing projects.
Key Features
- Intel® Jasper Lake N5105 / N5095 processors
- Quad-core low-power architecture
- 10nm manufacturing process
- Mini ITX form factor (170mm × 170mm)
- Supports up to 32GB DDR4 memory
- M.2 NVMe SSD storage support
- Triple independent display support
- LVDS, EDP and VGA display interfaces
- Optional dual Gigabit Ethernet support
- M.2 Key-E slot for WiFi and Bluetooth modules
- RS232 and RS485 industrial communication support
- Windows and Linux operating system compatibility
- Designed for 24/7 industrial operation
Processor Options
The FTA-D15P2E family supports multiple processor configurations to meet various embedded computing requirements.
| Model | CPU Platform | Typical Applications |
|---|---|---|
| FTA-D15P2E | Intel® Entry Platform | Industrial Control |
| FTA-H15P2E | Intel® Core™ i5 Platform | Automation Equipment |
| FTA-G14P2E | Intel® Core™ i7 Platform | Advanced Embedded Systems |
Designed for Reliable Embedded Computing
Industrial embedded systems require a balance between computing performance, energy efficiency, and long-term stability. The FTA-D15P2E is designed to meet these requirements by utilizing Intel Jasper Lake processors, which provide reliable multi-core performance while maintaining low thermal output and reduced power consumption.
This makes the motherboard particularly suitable for applications where continuous operation, compact installation, and low maintenance requirements are critical. Whether deployed in factory environments, transportation systems, healthcare facilities, or commercial terminals, the motherboard provides dependable computing performance throughout its operational lifecycle.
Intel Jasper Lake Performance Advantages
The Intel N5105 and N5095 processors provide significant improvements in CPU efficiency and graphics performance compared with previous low-power embedded platforms. The quad-core architecture enables responsive multitasking and supports a wide range of industrial software applications.
For manufacturers developing embedded devices, digital signage players, industrial gateways, and control systems, the FTA-D15P2E offers an effective combination of performance and cost efficiency.
The integrated graphics engine also enables smooth multimedia playback, high-resolution display output, and advanced graphical user interfaces required by modern industrial applications.
Triple Display Capability
The motherboard supports multiple display configurations to accommodate various embedded application requirements.
- LVDS + VGA + EDP triple display
- Dual LVDS + VGA configuration
- Dual EDP + VGA configuration
- Independent display content support
- Multi-screen monitoring systems
This flexibility enables developers to create advanced HMI terminals, smart retail displays, industrial monitoring stations, healthcare systems, and transportation information terminals without requiring additional graphics hardware.
Memory and Storage Flexibility
The FTA-D15P2E supports one DDR4 SO-DIMM slot with memory speeds up to 2933MHz and a maximum capacity of 32GB. This provides sufficient memory resources for industrial applications requiring stable multitasking and data processing capabilities.
The integrated M.2 2280 interface supports high-speed NVMe SSD storage, delivering faster system boot times, improved application responsiveness, and enhanced overall system performance.
An additional SATA 6Gbps interface allows users to expand storage capacity according to project requirements.
Industrial Connectivity
Industrial equipment requires dependable communication interfaces for interaction with sensors, controllers, displays, and network infrastructure. The FTA-D15P2E provides a comprehensive range of industrial connectivity options.
- Gigabit Ethernet networking
- Optional dual LAN support
- USB 3.0 high-speed interfaces
- USB 2.0 expansion ports
- RS232 serial communication
- RS485 industrial communication
- M.2 wireless module support
These interfaces make the motherboard suitable for industrial control systems, IoT gateways, smart terminals, transportation equipment, and intelligent manufacturing applications.
Industrial Automation Applications
The FTA-D15P2E is designed for industrial automation systems that require reliable operation and flexible communication capabilities. With support for RS232 and RS485 protocols, the motherboard can communicate directly with PLCs, sensors, motor drives, and industrial control equipment.
Its low-power architecture makes it especially suitable for distributed control systems and embedded controllers operating continuously in industrial environments.
Human Machine Interface Solutions
Modern HMI applications demand responsive user interfaces, high-resolution graphics, and flexible display configurations. The FTA-D15P2E provides the performance and connectivity necessary for industrial operator panels, manufacturing terminals, and process control systems.
The motherboard's multi-display support enables operators to monitor multiple data streams simultaneously, improving operational visibility and productivity.
Digital Signage and Smart Retail
Digital signage applications require reliable multimedia playback and stable system performance. The FTA-D15P2E supports high-resolution displays and smooth content delivery, making it suitable for advertising displays, information kiosks, self-service terminals, and interactive retail solutions.
Its compact design also simplifies installation in space-constrained environments.
Medical and Healthcare Equipment
Healthcare equipment manufacturers require stable computing platforms with long product lifecycles and dependable operation. The FTA-D15P2E can be integrated into medical monitoring systems, diagnostic equipment, patient information terminals, and laboratory devices.
The motherboard's flexible display architecture and storage options provide adaptability for a wide range of healthcare applications.
OEM & ODM Manufacturing Services
NEWEI provides comprehensive OEM and ODM manufacturing services for industrial motherboards, embedded computing platforms, and custom PCBA projects. Our engineering team supports BIOS customization, hardware modifications, interface expansion, enclosure integration, and full-scale production services.
From prototype development to mass production, NEWEI helps customers accelerate product development while maintaining strict quality control and manufacturing standards.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- Extensive OEM and ODM experience
- Complete PCBA production capabilities
- Custom engineering support
- Long-term product lifecycle management
- Strict quality assurance processes
- Flexible production quantities
- Global technical support
Frequently Asked Questions
Which processors are supported?
The motherboard supports Intel Jasper Lake N5105 and N5095 processors.
What is the maximum memory capacity?
Up to 32GB DDR4 memory is supported through a SO-DIMM slot.
Does the motherboard support NVMe SSDs?
Yes. The integrated M.2 interface supports NVMe SSD storage devices.
Can the board support three displays simultaneously?
Yes. LVDS, EDP and VGA interfaces can be configured for triple-display output.
Which operating systems are supported?
The motherboard supports Windows and Linux operating systems.
Can NEWEI provide OEM customization?
Yes. OEM and ODM services are available for hardware, BIOS, interfaces and system integration requirements.
Request A Quote
Contact NEWEI today to discuss your embedded motherboard requirements. Our engineering team can provide customized industrial computing solutions for automation, smart terminals, healthcare systems, digital signage, transportation equipment, and OEM embedded computing projects.
