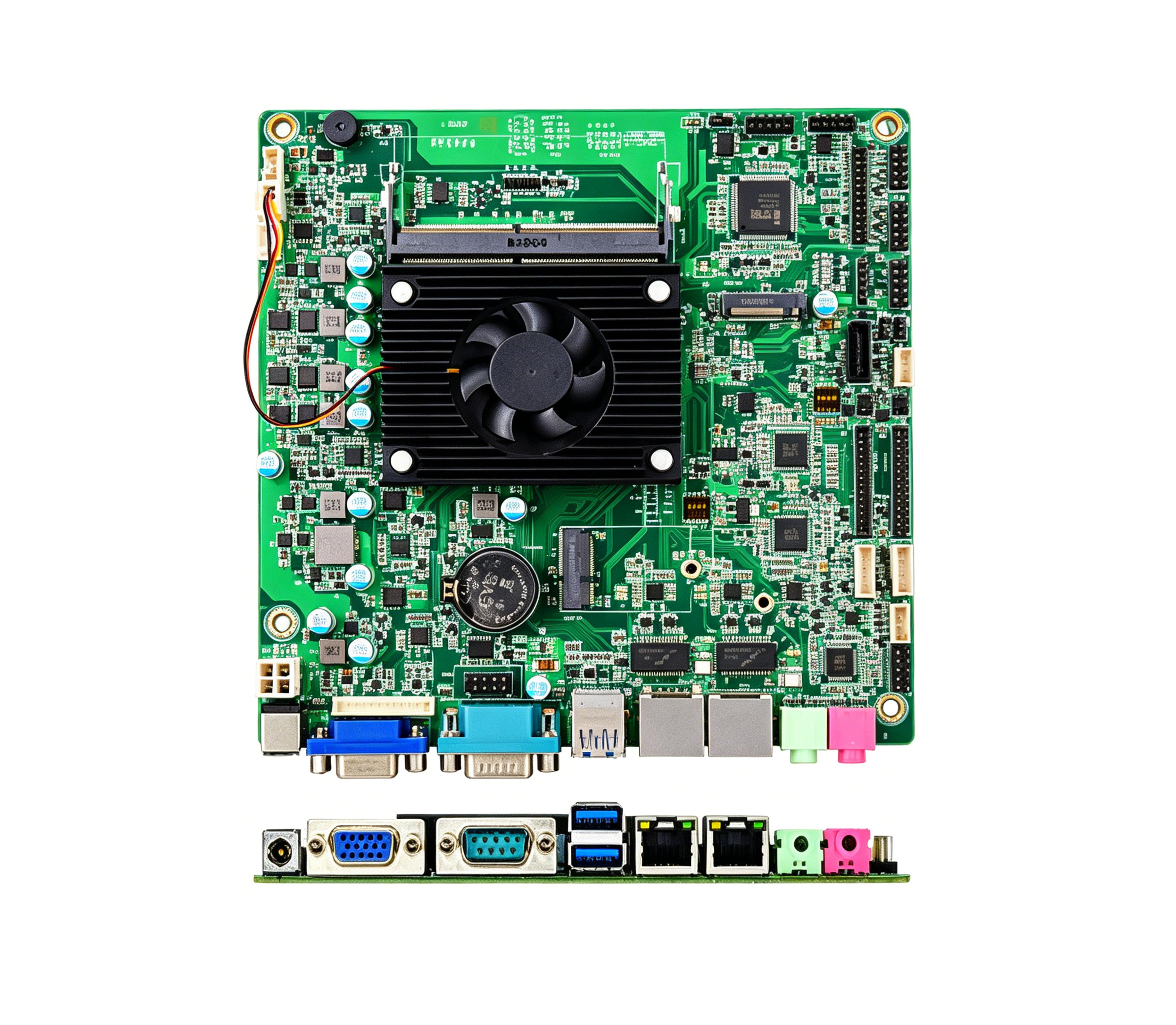

FTA-I63P2E Embedded Motherboard | Intel Tiger Lake Industrial Mini ITX Board
Product Specifications
- Model: FTA-I63P2 E / FTA-H63P2 E / FTA-G63P2 E
- Processor: Intel® 11th Gen Tiger Lake 6305 / Core i5-1145G7 series, 2/4-core, 10nm process
- Memory: Supports DDR4L-3200MHz, 1*SO-DIMM slot, 1.2V, max 32GB
- LAN: 1*Realtek PCI-E bus RTL8106E / RTL8111H Gigabit Ethernet controller (optional dual-Gigabit configuration)
- Display: Supports triple display with clone or extended mode in the following configurations:
- Option 1: 1*LVDS + 1*VGA + 1*eDP
- Option 2: 2*LVDS + 1*VGA
- Option 3: 2*eDP + 1*VGA
- WiFi: 1*M.2 (Key-E, 2230, WiFi + BT)
- Storage: 1*SATA 6Gb/s standard socket, 1*M.2 (2280, NVMe protocol)
- USB: 2*USB3.0 (rear I/O), 2*USB2.0 (rear I/O), 4*USB2.0 pin headers, 1*TACH-USB
- COM Ports: 2*onboard COM; COM2 can be configured as RS485/232 (optional)
- OS Support: Windows 10, Linux
- Dimensions: 170mm * 170mm
Technical Capabilities
FTA-I63P2E Embedded Motherboard | Intel Tiger Lake Industrial Mini ITX Board
The FTA-I63P2E Embedded Motherboard is a high-performance industrial computing platform based on Intel® 11th Generation Tiger Lake processors. Designed for industrial automation, HMI systems, intelligent display terminals, medical devices, self-service kiosks, digital signage, and embedded control applications, the FTA-I63P2E combines powerful computing performance, flexible display capabilities, industrial-grade reliability, and long product lifecycle support in a compact Mini ITX form factor.
Powered by Intel® Tiger Lake 6305 and Core™ i5-1145G7 processors built on a 10nm architecture, the motherboard delivers excellent CPU and graphics performance while maintaining low power consumption. Combined with support for DDR4 memory, NVMe SSD storage, multiple display interfaces, industrial communication ports, and optional dual LAN configurations, the FTA-I63P2E provides a versatile solution for OEM and ODM industrial computing projects.
Why Choose the FTA-I63P2E Embedded Motherboard?
Industrial applications increasingly require higher processing performance, richer graphics capabilities, and reliable long-term operation. Traditional embedded platforms often struggle to support modern display requirements, AI-assisted applications, and multi-device connectivity. The FTA-I63P2E addresses these challenges through Intel's advanced Tiger Lake platform while maintaining the stability required for industrial environments.
The motherboard is specifically engineered for manufacturers developing industrial control systems, smart terminals, medical equipment, digital signage players, industrial displays, transportation terminals, and edge computing solutions. Its compact Mini ITX design simplifies system integration while offering sufficient expansion capabilities for future upgrades.
For system integrators and OEM manufacturers, the FTA-I63P2E provides a cost-effective and scalable foundation that reduces development time while ensuring long-term availability and support.
Key Features
- Intel® 11th Generation Tiger Lake processors
- Supports Intel® 6305 and Core™ i5-1145G7 CPUs
- 10nm processor architecture for enhanced performance and efficiency
- Mini ITX form factor (170mm × 170mm)
- Up to 32GB DDR4-3200 memory support
- M.2 NVMe SSD support for high-speed storage
- Triple independent display support
- LVDS, EDP and VGA display interfaces
- Optional dual Gigabit Ethernet configuration
- Integrated M.2 Key-E slot for WiFi and Bluetooth modules
- Industrial RS232 and RS485 communication support
- Windows and Linux operating system compatibility
Designed for long-term industrial deployment
Available CPU Configurations
The FTA-I63P2E platform is available with multiple Intel® processor options to support different performance requirements.
| Model | Processor | Application Focus |
|---|---|---|
| FTA-I63P2E | Intel® Processor 6305 | Industrial Control |
| FTA-H63P2E | Intel® Core™ i5-1145G7 | Machine Vision |
| FTA-G63P2E | Intel® Core™ i7 Series | High Performance Edge Computing |
Processor Performance
The FTA-I63P2E utilizes Intel® Tiger Lake processors, offering significant improvements in CPU performance, graphics capability, and power efficiency compared to previous embedded platforms. The Intel Core i5-1145G7 processor provides four cores and eight threads, enabling smooth multitasking and demanding industrial workloads.
This performance advantage is particularly beneficial for applications involving graphical user interfaces, industrial monitoring systems, machine control software, digital signage content management, and real-time data processing. Manufacturers can deploy sophisticated applications without requiring additional computing hardware.
Tiger Lake’s enhanced integrated graphics also improve multimedia processing and display performance, making the motherboard suitable for advanced visualization systems and industrial display applications.
Advanced Triple Display Architecture
One of the most significant advantages of the FTA-I63P2E is its flexible multi-display architecture. The motherboard supports several display configurations depending on project requirements.
- LVDS + VGA + EDP triple independent displays
- Dual LVDS + VGA triple display configuration
- Dual EDP + VGA triple display configuration
- Simultaneous multi-screen operation
- Independent content output on each display
This flexibility enables system designers to build advanced HMI systems, digital signage networks, industrial monitoring stations, healthcare terminals, transportation displays, and self-service kiosks that require multiple screens operating simultaneously.
The ability to support independent display outputs significantly improves user interaction and operational efficiency while reducing the need for additional graphics hardware.
Memory and Storage Expansion
The motherboard supports one DDR4 SO-DIMM slot with memory speeds up to 3200MHz and a maximum capacity of 32GB. This provides sufficient resources for industrial applications requiring large datasets, complex graphical interfaces, and real-time processing capabilities.
For storage, the integrated M.2 2280 NVMe interface delivers high-speed SSD support, dramatically improving system responsiveness, application loading times, and data throughput compared with traditional SATA storage solutions.
The board also includes a SATA 6Gbps interface for additional storage expansion, allowing users to combine NVMe performance with large-capacity SATA drives for flexible storage configurations.
Industrial Connectivity
Industrial systems require reliable communication with sensors, controllers, displays, and external devices. The FTA-I63P2E offers a comprehensive range of industrial interfaces to support these requirements.
- Gigabit Ethernet networking
- Optional dual LAN configuration
- USB 3.0 high-speed connectivity
- USB 2.0 expansion interfaces
- RS232 serial communication
- RS485 industrial communication support
- M.2 Key-E wireless module support
These interfaces make the motherboard suitable for industrial automation, building management systems, transportation applications, smart city deployments, and intelligent manufacturing environments.
Industrial Automation Applications
Industrial automation systems require stable operation, long lifecycle support, and reliable communication interfaces. The FTA-I63P2E provides the performance and connectivity necessary for automation controllers, data acquisition systems, industrial gateways, and monitoring platforms.
The support for RS232 and RS485 communication standards allows seamless integration with PLCs, sensors, motor controllers, and industrial equipment widely used throughout manufacturing environments.
By combining powerful processing capabilities with industrial communication support, the motherboard helps manufacturers improve operational efficiency while reducing system complexity.
Human Machine Interface (HMI) Systems
Modern HMI systems increasingly demand responsive user interfaces, high-resolution graphics, and multi-display support. The FTA-I63P2E enables manufacturers to develop sophisticated operator panels and control terminals capable of delivering rich visual experiences.
The combination of Intel Tiger Lake graphics performance and flexible display options makes the motherboard particularly suitable for touchscreen control panels, industrial workstations, and smart factory visualization systems.
Digital Signage and Smart Displays
Digital signage systems require reliable hardware capable of continuous operation while delivering smooth multimedia performance. The FTA-I63P2E supports high-resolution display outputs and efficient media processing, making it ideal for advertising displays, information kiosks, transportation signage, and interactive terminals.
Its compact form factor simplifies integration into space-constrained enclosures while maintaining excellent thermal and operational characteristics.
Medical Equipment Applications
Medical devices demand reliable computing platforms with long-term availability and stable performance. The FTA-I63P2E can be integrated into diagnostic systems, patient monitoring devices, laboratory equipment, and healthcare information terminals.
Its support for multiple displays and high-speed storage provides flexibility for healthcare manufacturers developing advanced user interfaces and data-intensive applications.
Why Choose NEWEI?
- Professional industrial motherboard manufacturer
- Extensive OEM and ODM experience
- Complete PCBA manufacturing capabilities
- Engineering customization support
- Strict quality control processes
- Long-term product lifecycle support
- Flexible production volumes
- Global customer support services
Frequently Asked Questions
What processors are supported by the FTA-I63P2E?
The motherboard supports Intel® 11th Generation Tiger Lake processors, including Intel® 6305 and Intel® Core™ i5-1145G7 series CPUs.
What is the maximum memory capacity?
The board supports up to 32GB DDR4-3200 memory through a SO-DIMM slot.
Does the motherboard support NVMe SSDs?
Yes. The integrated M.2 2280 interface supports high-speed NVMe SSD storage devices.
Can the motherboard support three displays simultaneously?
Yes. Depending on the configuration, LVDS, EDP, and VGA interfaces can be used for triple-display output.
Is wireless connectivity supported?
Yes. An M.2 Key-E slot is available for WiFi and Bluetooth modules.
Which operating systems are supported?
The motherboard supports Windows 10 and Linux operating systems.
Can NEWEI provide customized versions?
Yes. OEM and ODM customization services are available for hardware, BIOS, interfaces, and system integration requirements.
Request a Quote
Looking for a reliable embedded motherboard manufacturer for industrial automation, digital signage, medical equipment, HMI systems, or custom embedded computing projects? Contact NEWEI today to discuss your requirements and receive a customized OEM or ODM manufacturing solution.
